Inspection Procedure
HINT
If "B of GND short malfunction of communication bus" DTCs (B1214 and B1215) are detected at the same time as "communication stop" DTC B1207, repair the "+B or GND short malfunction of communication bus" DTCs first (See DTC B1214 SHORT TO B+ IN DOOR SYSTEM COMMUNICATION BUS MALFUNCTION; DTC B1215 SHORT TO GND IN DOOR SYSTEM COMMUNICATION BUS MALFUNCTION )
- INSPECT FUSE (SECURITY)
- Remove the SECURITY fuse from the main body ECU LH (cowl side junction block LH)
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
RESISTANCE REFERENCETester Connection Condition Specified Condition SECURITY fuse Always Below 1 Ω
NG: REPLACE FUSE (SECURITY)
OK: Go to Next Step
- CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU - BATTERY AND BODY GROUND)
- Disconnect the P33 connector.
- Measure the voltage and resistance according to the value(s) in the table below.
Standard Voltage
VOLTAGE SPECIFICATIONTester Connection Condition Specified Condition P33-1 (+B1) - Body ground Always 11 to 14 V Standard Resistance
RESISTANCE REFERENCETester Connection Condition Specified Condition P33-17 (E) - Body ground Always Below 1 Ω
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (CERTIFICATION ECU - BATTERY AND BODY GROUND)
OK: Go to Next Step

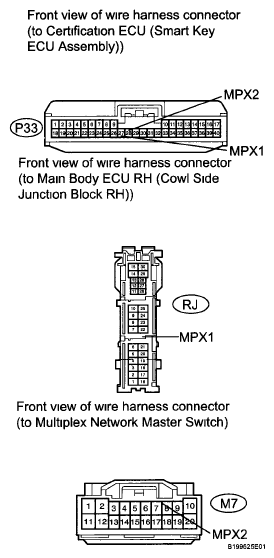

- CHECK HARNESS AND CONNECTOR (COMMUNICATION LINE)
- Disconnect the P33, RJ and M7 connectors
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
RESISTANCE REFERENCETester Connection Condition Specified Condition P33-27 (MPX1) - RJ-21 (MPX1) Always Below 1 Ω P33-28 (MPX2) - M7-8 (MPX2) Always Below 1 Ω
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) (See REMOVAL )
