Amplifier Antenna: Components

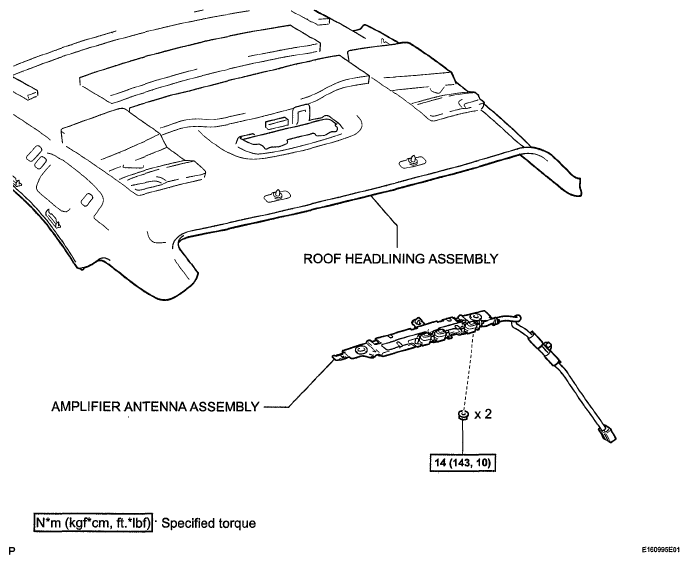

Fig 1: Amplifier Antenna Replacement Components with Torque Specifications
G05753485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
