Gateway ECU Power Source Circuit: Wiring Diagram

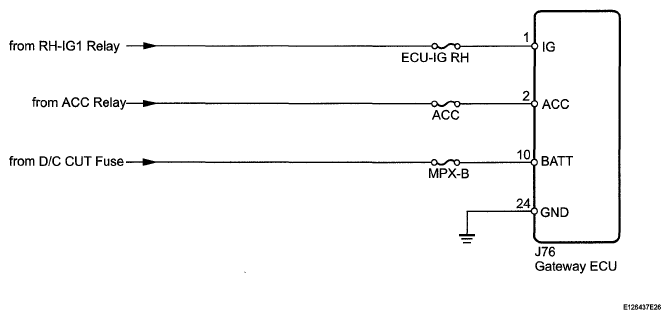

Fig 1: Gateway ECU Power Source - Wiring Diagram
G05753394Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
