Radio Receiver Power Source Circuit: Wiring Diagram

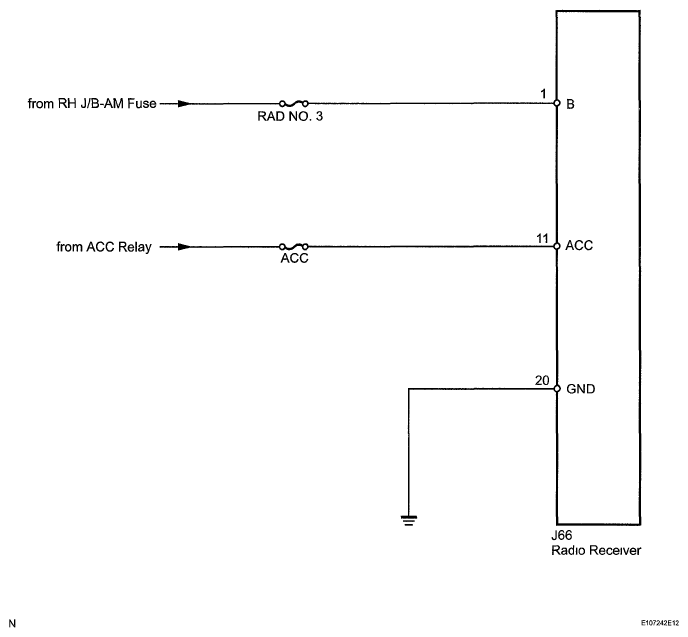

Fig 1: Radio Receiver Power Source - Wiring Diagram
G05753390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
