Radio Receiver: Installation

  1. INSTALL RADIO RECEIVER ASSEMBLY (w/o Navigation System)
    1. Install the radio receiver assembly as shown in the illustration.
      Fig 1: Installing Radio Receiver Assembly (W/O Navigation System)
      G05753409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 2 RADIO BRACKET (w/o Navigation System)
    1. Install the No. 2 radio bracket with the 6 bolts.
      Fig 2: Locating No. 2 Radio Bracket Bolts
      G05753402Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL NO. 1 RADIO BRACKET (w/o Navigation System)
    1. Install the No. 1 radio bracket with the 6 bolts.
    Fig 3: Locating No. 1 Radio Bracket Bolts
    G05753401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL INTEGRATION CONTROL PANEL WITH RADIO RECEIVER ASSEMBLY (w/o Navigation System)
    1. Connect each connector
    2. Install the integration control panel with radio receiver assembly with the 4 bolts.

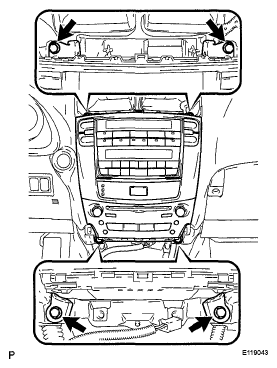

      Fig 4: Locating Integration Control Panel Bolts
      G05753400Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL RADIO RECEIVER ASSEMBLY (w/ Navigation System)
    1. Install the radio receiver assembly as shown in the illustration.
      Fig 5: Installing Radio Receiver Assembly (W/ Navigation System)
      G05753413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL NO. 2 RADIO BRACKET (w/ Navigation System)
    1. Install the No. 2 radio bracket with the 7 bolts.
      Fig 6: Locating No. 2 Radio Bracket Bolts
      G05753407Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL NO. 1 RADIO BRACKET (w/ Navigation System)
    1. Install the No. 1 radio bracket with the 7 bolts.
      Fig 7: Locating No. 1 Radio Bracket Bolts
      G05753406Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the connector clamp.
    Fig 8: Identifying Connector Clamp
    G05753405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY (w/ Navigation System)
    1. Connect each connector
    2. Install the the multi-display with radio receiver assembly with the 4 bolts.

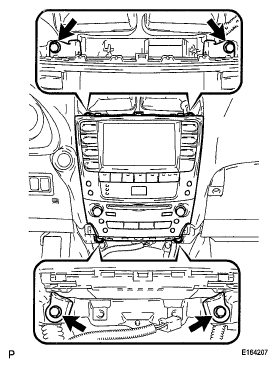

    Fig 9: Locating Multi-Display With Radio Receiver Assembly Bolts
    G05753404Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL  (See INSTALLATION )
  10. INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY  (See INSTALLATION )
  11. INSTALL FRONT ASH RECEPTACLE ASSEMBLY  (See INSTALLATION )
  12. INSTALL CONSOLE PANEL SUB-ASSEMBLY  (See INSTALLATION )
  13. INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH  (See INSTALLATION )
  14. INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH  (See INSTALLATION )
  15. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY  (See INSTALLATION )
  16. ADJUST CLOCK
