Steering Pad Switch: Components

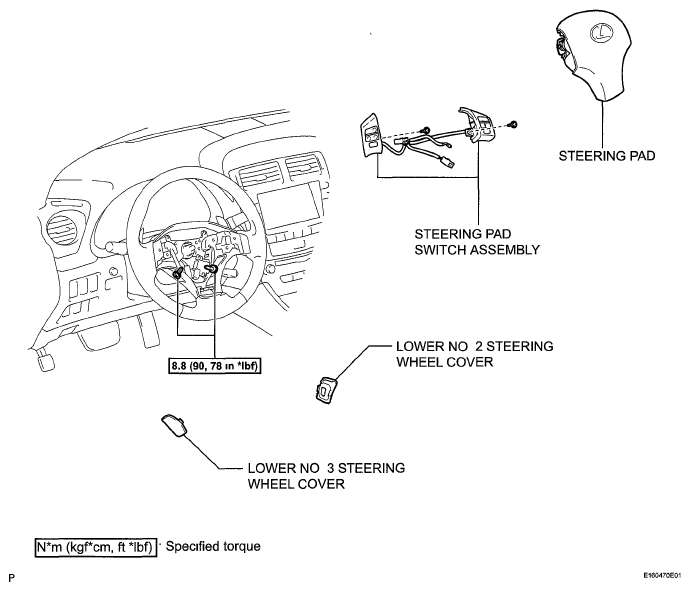

Fig 1: Steering Pad Switch Replacement Components With Torque Specifications
G05753492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
