Stereo Component Amplifier: Installation

INSTALL STEREO COMPONENT AMPLIFIER ASSEMBLY
INSTALL NO. 2 AMPLIFIER BRACKET
1. Install the No. 2 amplifier bracket with the 2 bolts

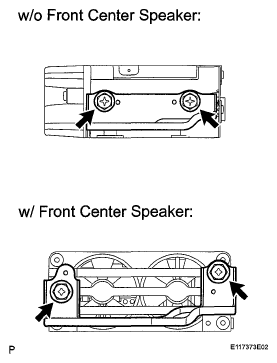

  Fig 1: Locating No. 2 Amplifier Bracket Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 AMPLIFIER BRACKET
1. Install the No. 1 amplifier bracket with the 2 bolts.

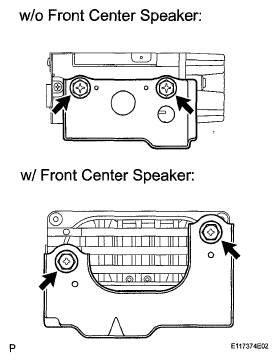

  Fig 2: Locating No. 1 Amplifier Bracket Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL STEREO COMPONENT AMPLIFIER ASSEMBLY WITH BRACKET
1. Install the amplifier cover with the 2 clips

  Fig 3: Locating Amplifier Cover Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the stereo component amplifier assembly with bracket with the 2 nuts
3. Connect each connector.

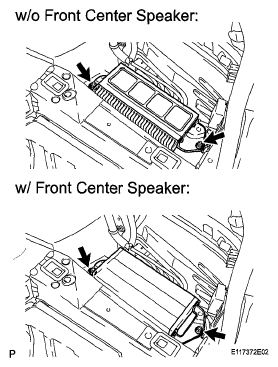

  Fig 4: Locating Stereo Component Amplifier Assembly Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SIDE LUGGAGE COMPARTMENT TRIM COVER
1. Install the side luggage compartment trim cover with the 3 clips.

  Fig 5: Identifying Side Luggage Compartment Trim Cover Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM HOOK
1. Install the No. 1 luggage compartment trim hook with the screw.
Fig 6: Identifying Luggage Compartment Trim Hook Screw
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT LUGGAGE COMPARTMENT TRIM COVER (See INSTALLATION )
INSTALL NO. 2 LUGGAGE COMPARTMENT TRIM HOOK (See INSTALLATION )
INSTALL ROPE HOOK (See INSTALLATION )
INSTALL NO. 2 ROOM LIGHT ASSEMBLY (See INSTALLATION )
INSTALL REAR LUGGAGE COMPARTMENT TRIM COVER (See INSTALLATION )
INSTALL ROPE HOOK ASSEMBLY
1. Install the 3 rope hook assemblies with the 3 bolts.
Fig 7: Identifying Rope Hook Assemblies Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL DECK SIDE TRIM BOX LH
INSTALL DECK SIDE TRIM BOX RH
INSTALL LUGGAGE COMPARTMENT TRIM COVER
