Parts Location

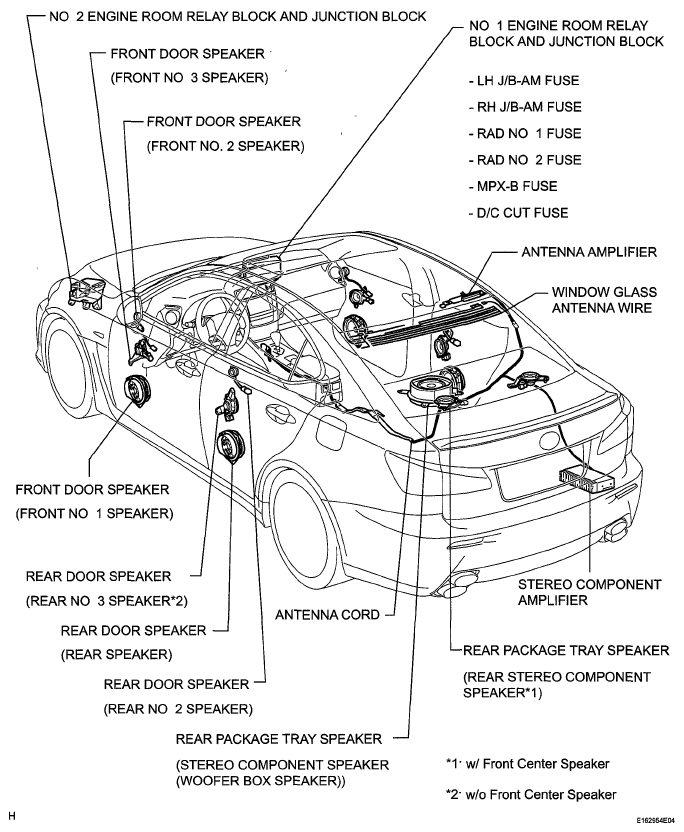

Fig 1: Identifying Audio And Visual System Parts Location (1 Of 2)
G05753273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

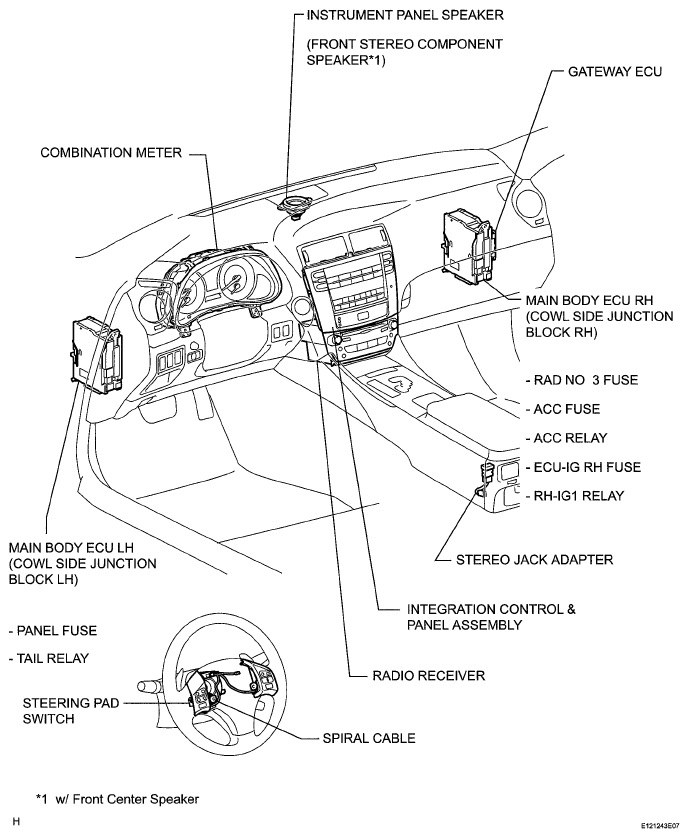

Fig 2: Identifying Audio And Visual System Parts Location (2 Of 2)
G05753274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
