Front Door Lock: Components

Fig 1: Front Door Lock Replacement Components With Torque Specifications (1 Of 2)
G05754257Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

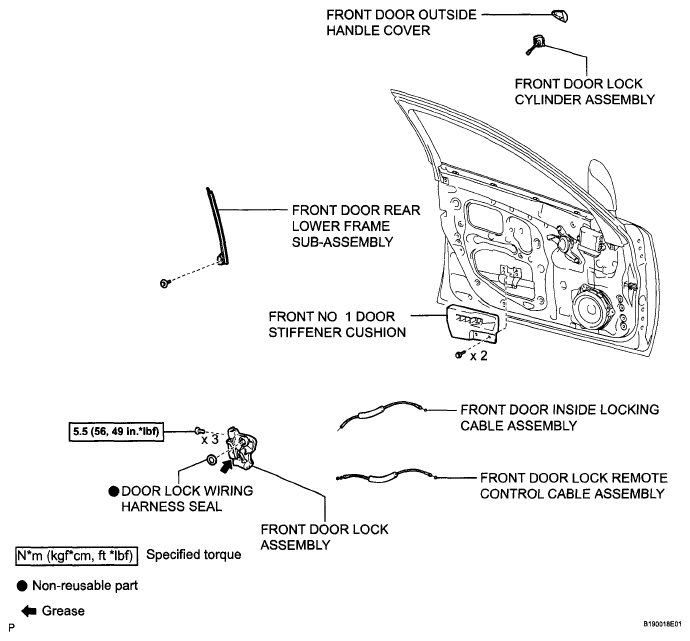

Fig 2: Front Door Lock Replacement Components With Torque Specifications (2 Of 2)
G05754258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
