System Diagram

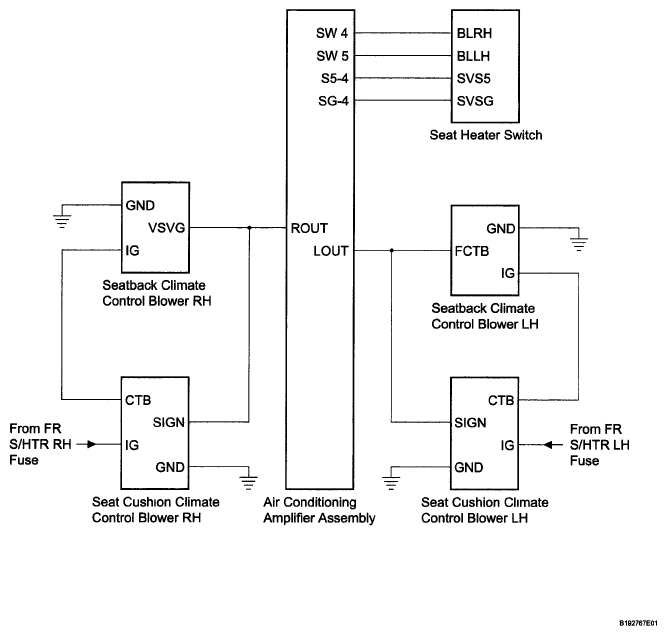

Fig 1: Climate Control Seat System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
