Driver Side Seat Memory Switch Circuit: Wiring Diagram

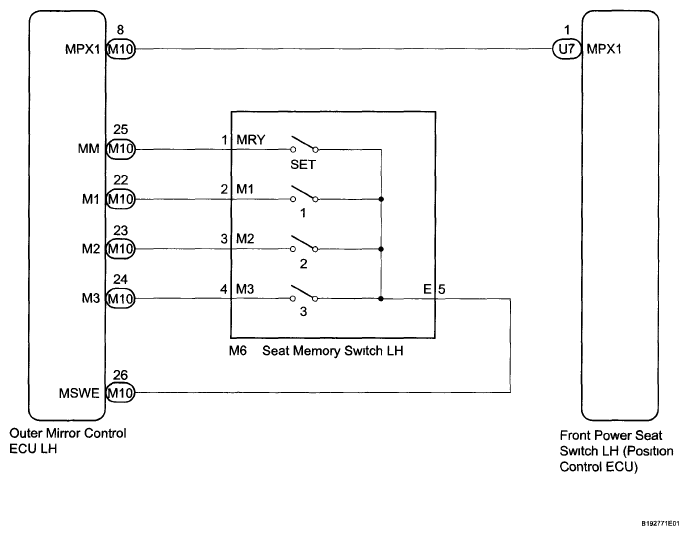

Fig 1: Driver Side Seat Memory Switch Wiring Diagram
G05754854Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
