Lumbar Support Adjuster Assembly: Components

Fig 1: Front Seat Assembly Replacement Components (1 Of 5) With Torque Specifications
G05754899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

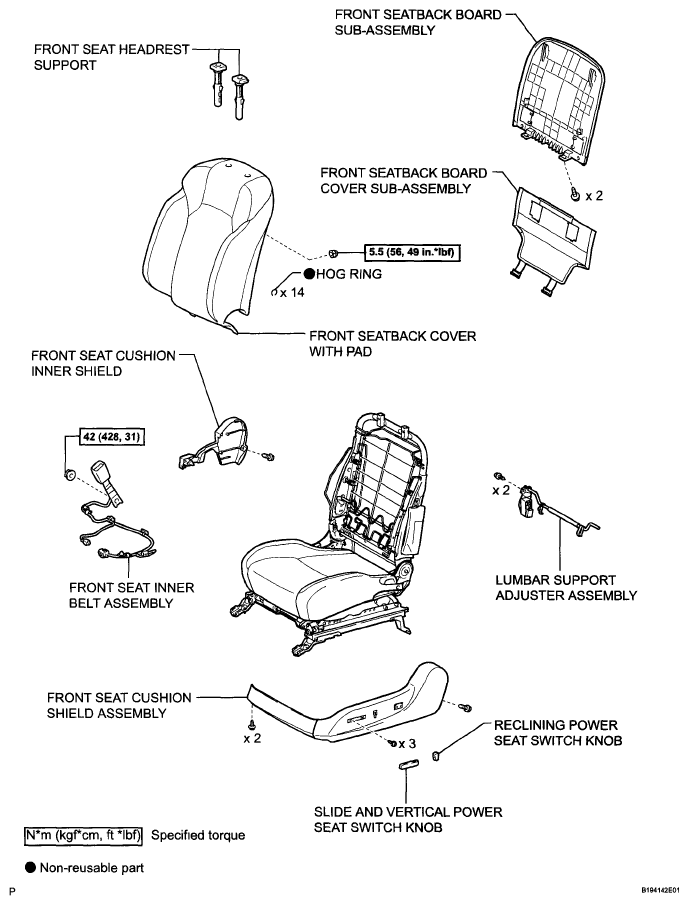

Fig 2: Lumbar Support Adjuster Assembly Replacement Components (2 Of 2) With Torque Specifications
G05755066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
