POWER WINDOW REGULATOR MOTOR (for Front Door): Components

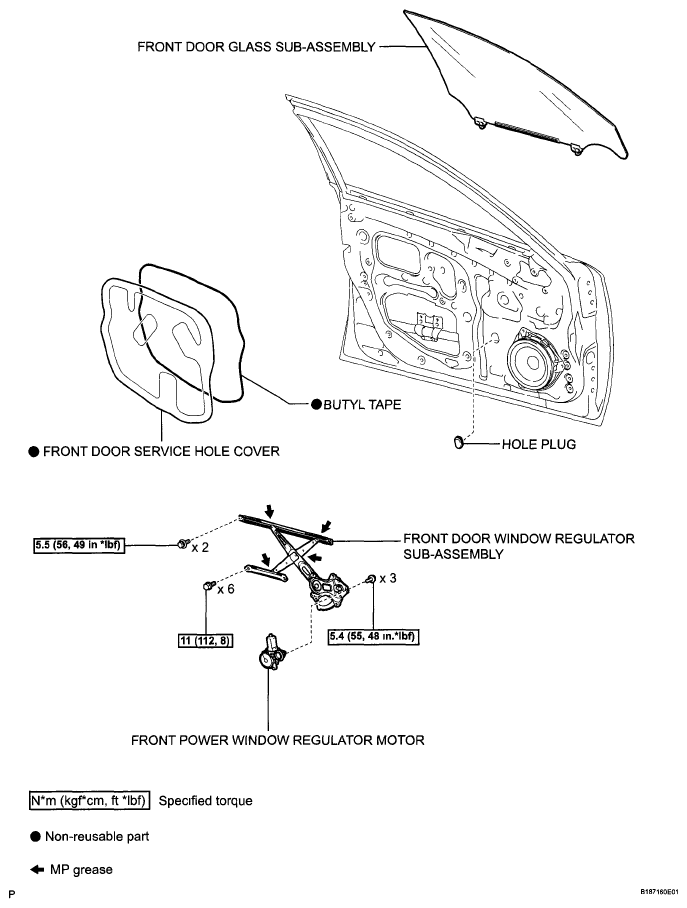

Fig 1: Identifying Power Window Regulator Motor (For Front Door) Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

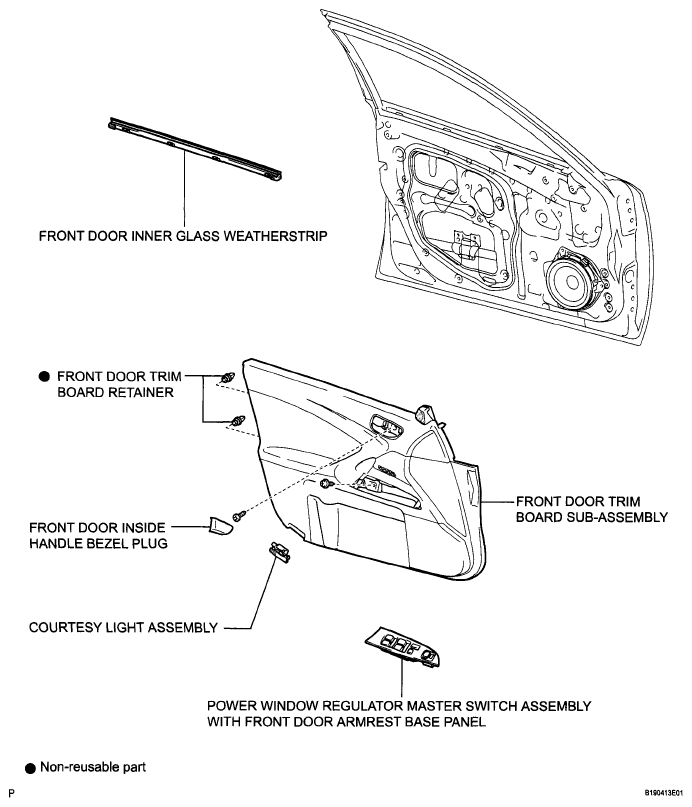

Fig 2: Power Window Regulator Motor (For Front Door) Replacement Components (2 Of 2) With Torque Specifications
