Inspection Procedure

1. Remove the FR DOOR RH fuse from the main body ECU RH (cowl side junction block RH).
2. Measure the resistance according to the value(s) in the table below

   Standard Resistance

   STANDARD RESISTANCE



   Tester Connection	Condition	Specified Condition
   FR DOOR RH fuse	Always	Below 1 Ω

NG: REPLACE FUSE

OK: Go to next step

1. Check that the front passenger side remote UP/DOWN function operates normally (See OPERATION CHECK  )

   OK: Front passenger side remote UP/DOWN function operates normally.

NG: Go to step 3

OK: REPLACE MULTIPLEX NETWORK SWITCH ASSEMBLY (for Front Passenger Side)  (See REMOVAL  )

1. Disconnect the multiplex network switch assembly (for front passenger side) connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   STANDARD RESISTANCE



   Tester Connection	Condition	Specified Condition
   L13-7 (GND) - Body ground	Always	Below 1 Ω

3. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   STANDARD VOLTAGE



   Tester Connection	Condition	Specified Condition
   L13-12 (BDR) - L13-7 (GND)	Always	11 to 14 V

   Fig 1: Identifying Multiplex Network Switch Assembly (For Front Passenger Side) Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Turn the engine switch on (IG).
2. Measure the voltage according to the value(s) in the table below

   Standard Voltage

   STANDARD VOLTAGE



   Tester Connection	Switch Condition	Specified Condition
   M7-6 (PWS) - Body ground	Power window lock switch UNLOCK	11 to 14 V
   M7-6 (PWS) - Body ground	Power window lock switch LOCK	Below 1 V

Fig 2: Identifying Multiplex Network Master Switch Assembly Connector Terminals (Window Lock Switch Operation Signal)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY  (See REMOVAL  )

OK: Go to next step

1. Disconnect the multiplex network master switch assembly connector.
2. Measure the resistance according to the value(s) in the table below

   Standard Resistance

   STANDARD RESISTANCE



   Tester Connection	Condition	Specified Condition
   M7-6 (PWS) - L13-11 (PCT)	Always	Below 1 Ω
   M7-6 (PWS) - Body ground	Always	10 kΩ or higher

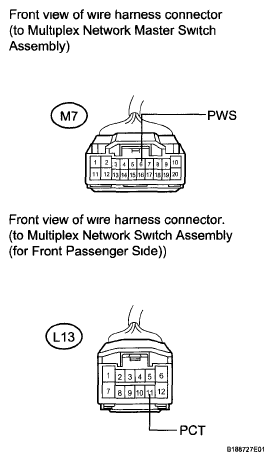

Fig 3: Identifying Multiplex Network Master Switch Assembly Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Remove the front power window regulator motor assembly (for front passenger side) (See REMOVAL  )
2. Check power window regulator motor operation.
   1. Apply battery voltage to connector terminals 1 and 2.
      NOTE: Do not apply battery voltage to any terminals except terminals 1 and 2.
   2. Check that the motor gear rotates smoothly as follows.

      OK

      MEASUREMENT CONDITION AND SPECIFIED CONDITION



      Measurement Condition	Specified Condition
      Battery positive (+) → 1 Battery negative (-) → 2	Motor gear rotates clockwise
      Battery positive (+) → 2 Battery negative (-) → 1	Motor gear rotates counterclockwise

3. Check PTC operation.
   NOTE: This check must be performed with the power window regulator and door glass installed on the vehicle.

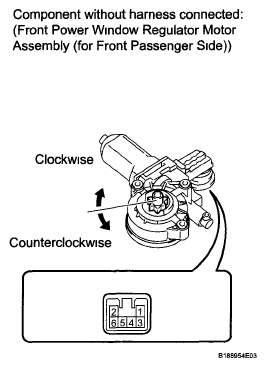

   Fig 4: Identifying Power Window Regulator Motor Operation

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Install the front power window regulator motor assembly (for front passenger side) (See INSTALLATION  )
   2. Connect an electrical tester DC 400 A probe to the wire harness of terminal 2
      NOTE: Match the arrow mark of the probe with the direction of the current flow.
   3. Fully close the door glass by pulling up the multiplex network switch assembly (for front passenger side) Wait for approximately 60 seconds.
   4. Continue to pull up the multiplex network switch assembly (for front passenger side) and measure how long it takes for the electrical current to change from a range of 16 to 28 A to approximately 1 A (current shut-off inspection).

      Standard: 4 to 90 seconds

   5. Wait for 60 seconds after the previous step, and then push down the multiplex network switch assembly (for front passenger side)
      Fig 5: Identifying Front Power Window Regulator Motor Assembly Connector (For Front Passenger Side)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK: The passenger side window goes down.

NG: REPLACE FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Front Passenger Side)  (See REMOVAL  )

OK: Go to next step

1. Disconnect the front power window regulator motor assembly (for front passenger side) connector
2. Measure the resistance according to the value(s) in the table below

   Standard Resistance

   STANDARD RESISTANCE



   Tester Connection	Condition	Specified Condition
   L13-6 (UP) - L4-2 (U)	Always	Below 1 Ω
   L13-1 (DN) - L4-1 (D)	Always	Below 1 Ω
   L13-6 (UP) - Body ground	Always	10 kΩ or higher
   L13-1 (DN) - Body ground	Always	10 kΩ or higher

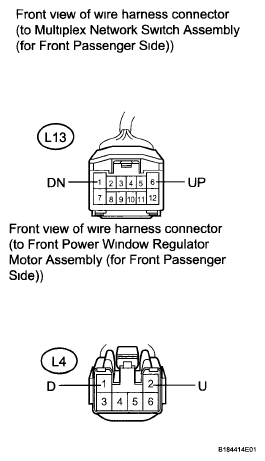

Fig 6: Identifying Front Power Window Regulator Motor Assembly (For Front Passenger Side) Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: REPLACE MULTIPLEX NETWORK SWITCH ASSEMBLY (for Front Passenger Side)  (See REMOVAL  )
