Rear Power Window RH does not Operate with Rear Power Window Switch RH: Wiring Diagram

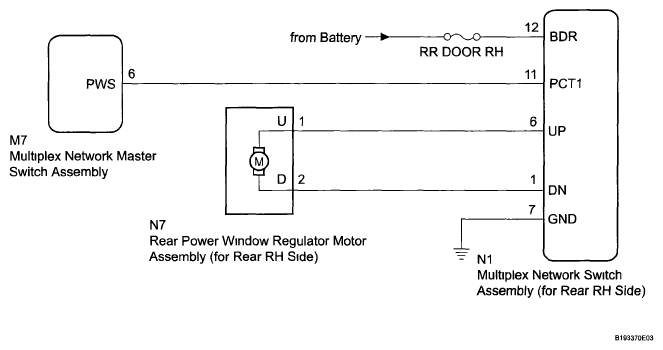

Fig 1: Rear Power Window Regulator Motor Assembly (For Rear RH Side) Wiring Diagram
G05755750Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
