DTC C1225/25 SM Solenoid Circuit: Wiring Diagram

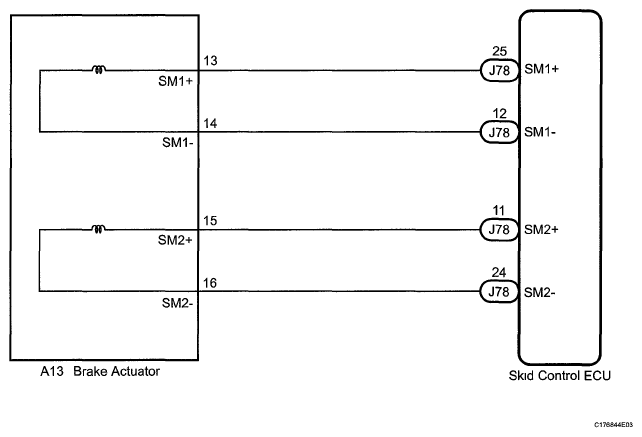

Fig 1: SM Solenoid Wiring Diagram

G05752598

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
