DTC C1267/67 Brake Pedal Load Sensing Switch: Wiring Diagram

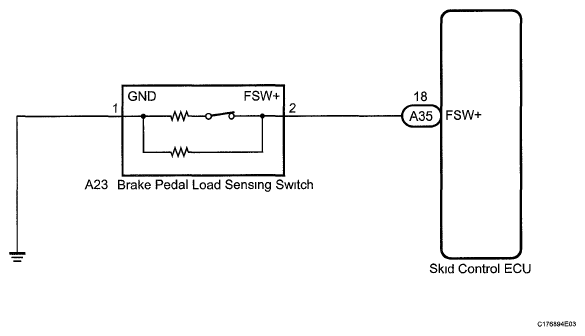

Fig 1: Brake Pedal Load Sensing Switch Wiring Diagram
G05752633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
