DTC C1305/21 Solenoid Identification Circuit: Description

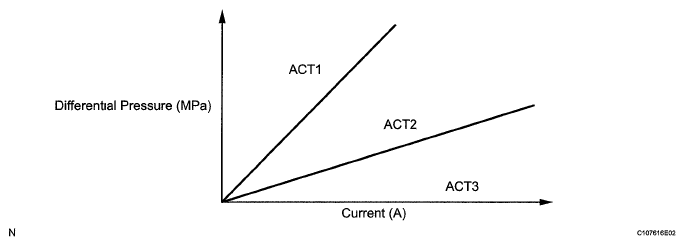

The skid control ECU receives solenoid identification signals from terminals SSEL and SEL2. The skid control ECU specifies brake actuator control characteristics by monitoring the difference in the holding solenoid (FRA, FLA, RRA and RLA) current caused by characteristics of each actuator
DTC DETECTION CONDITION
| DTC Code | DTC Detection Condition | Trouble Area |
|---|---|---|
| C1305/21 | Immediately after the engine is started, an open or short in the solenoid characteristics identification circuit continues for 0 21 seconds or more |
|
