DTC C1305/21 Solenoid Identification Circuit: Wiring Diagram

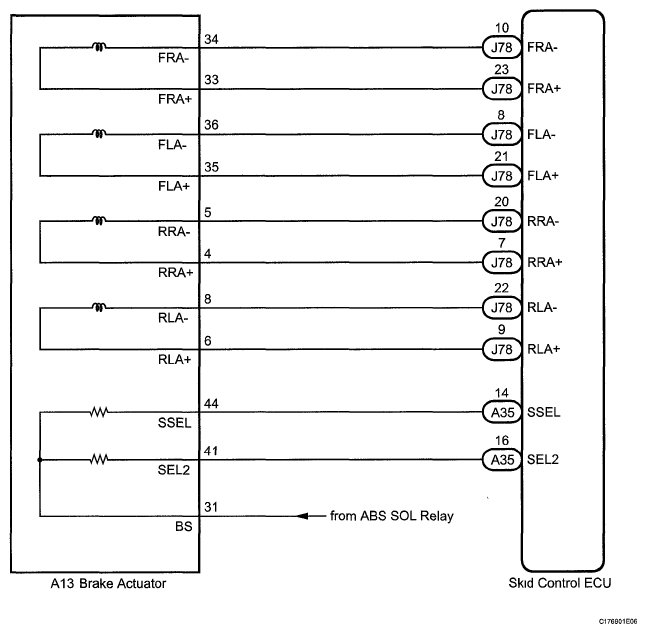

Fig 1: Solenoid Identification Wiring Diagram
G05752637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
