Skid Control Buzzer Circuit: Wiring Diagram

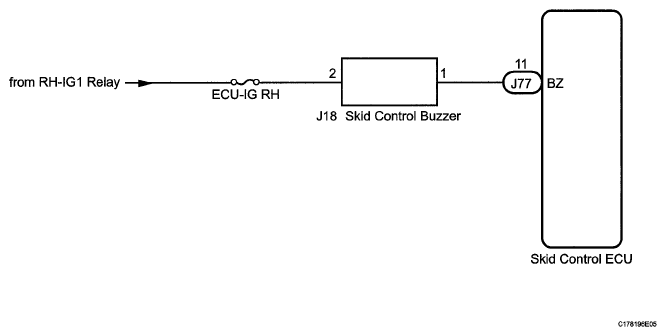

Fig 1: Skid Control Buzzer Wiring Diagram
G05752665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
