Inspection Procedure

NOTE: When replacing the skid control ECU, perform zero point calibration and store system information (See CALIBRATION  ).
  1. CHECK CAN COMMUNICATION SYSTEM
    1. Check if a CAN communication system DTC is output (See DTC CHECK / CLEAR  )

      Result

      RESULT REFERENCE

      Result Proceed to
      DTC is not output A
      DTC is output B

    B: INSPECT CAN COMMUNICATION SYSTEM  (See DIAGNOSTIC TROUBLE CODE CHART  )

    A: Go to next step

  2. INSPECT DLC3
    1. Turn the engine switch on (IG)
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      STANDARD VOLTAGE

      Tester Connection Switch Condition Specified Condition
      J21-13 (TC) - J21-4 (CG) Engine switch on (IG) 11 to 14 V
      Fig 1: Identifying DLC3
      G05752670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Result

      RESULT REFERENCE

      Result Proceed to
      NG A
      OK B

    B: Go to step  5

    A: Go to next step

  3. CHECK HARNESS AND CONNECTOR (TC of DLC3 - ECM)
    1. Turn the engine switch off.
    2. Disconnect the ECM connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      STANDARD RESISTANCE

      Tester Connection Condition Specified Condition
      J21-13 (TC) - A6-21 (TC) Always Below 1 Ω
      J21-13 (TC) - Body ground Always 10 kΩ or higher

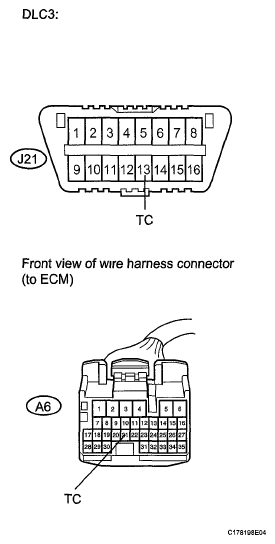

    4. Fig 2: Identifying Harness And Connector (TC Of DLC3 - ECM)
      G05752671Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  4. CHECK HARNESS AND CONNECTOR (CG of DLC3 - BODY GROUND)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      STANDARD RESISTANCE

      Tester Connection Condition Specified Condition
      J21-4 (CG) - Body ground Always Below 1 Ω
    2. Fig 3: Identifying Harness And Connector (CG Of DLC3 - Body Ground)
      G05752672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  5. CHECK ECM (TC of DLC3 INPUT)
    1. Turn the engine switch off.
    2. Reconnect the ECM connector.
    3. Using SST, connect terminals TC and CG of the DLC3.

      SST 09843-18040

    4. Turn the engine switch on (IG).
    5. Check that the check engine warning light is blinking.
      Fig 4: Identifying ECM (TC Of DLC3 Input)
      G05752670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Result

      RESULT REFERENCE

      Result Proceed to
      Check engine warning light is blinking A
      Check engine warning light is not blinking B

      HINT.

      If troubleshooting has been carried out according to Problem Symptoms Table, refer back to the table and proceed to the next step before replacing the part (See PROBLEM SYMPTOMS TABLE  )

    B: REPAIR OR REPLACE WIRE HARNESS OR ECM (TC of ECM CIRCUIT)

    A: REPLACE SKID CONTROL ECU  (See REMOVAL  )
