Ground Point: Notes

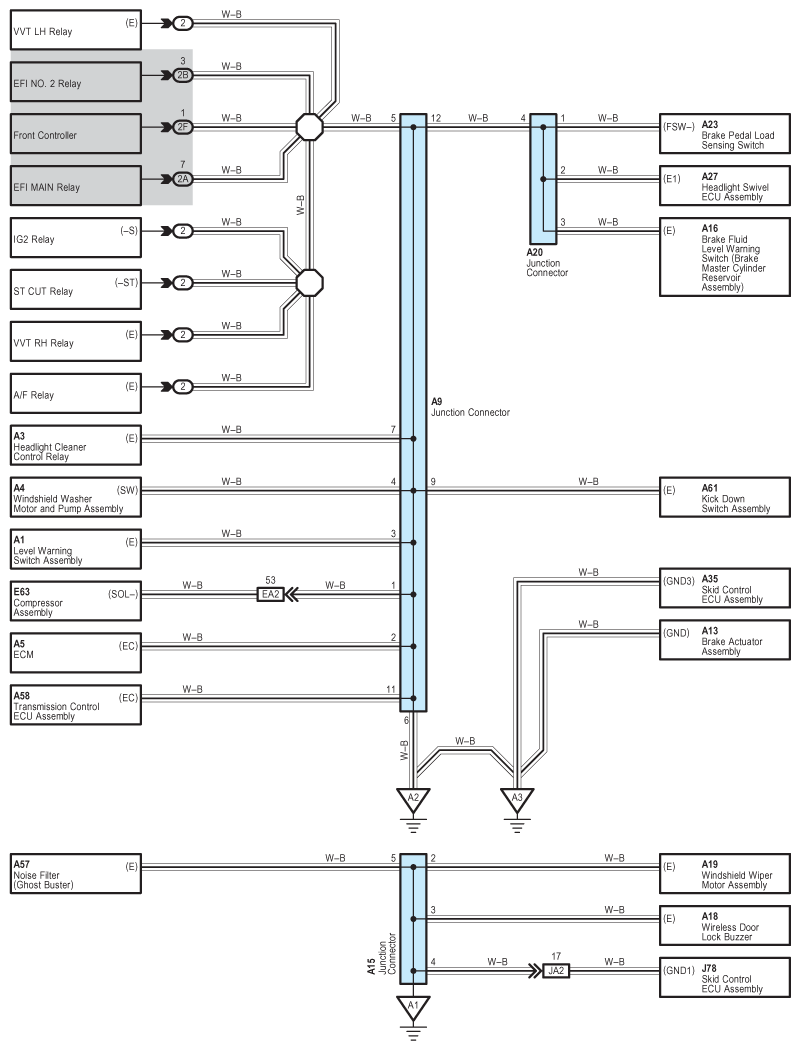

Fig 1: Ground Point - Wiring Diagram (1 Of 9)

G07592476

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

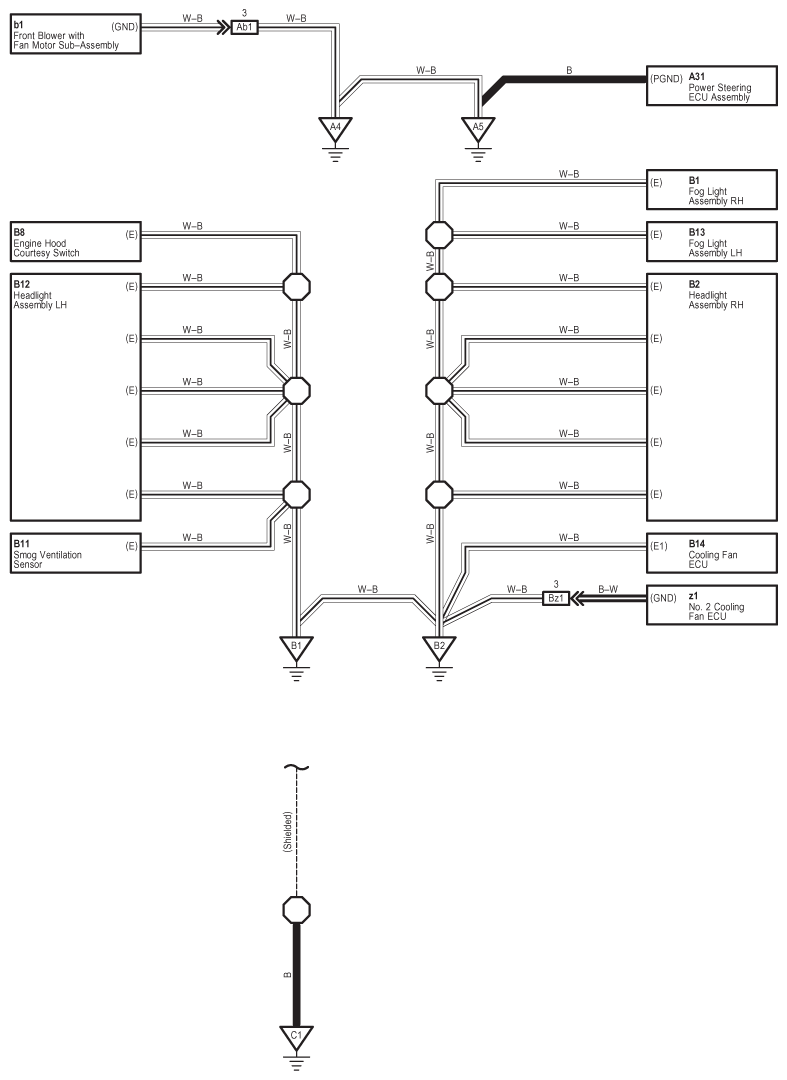

Fig 2: Ground Point - Wiring Diagram (2 Of 9)

G07592477

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

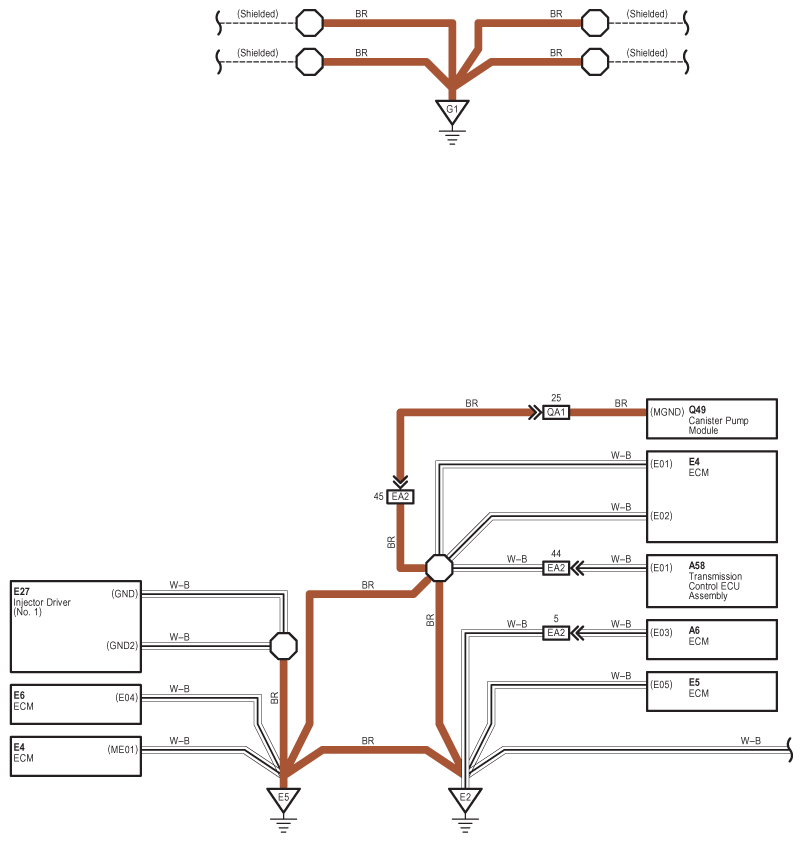

Fig 3: Ground Point - Wiring Diagram (3 Of 9)

G07592478

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

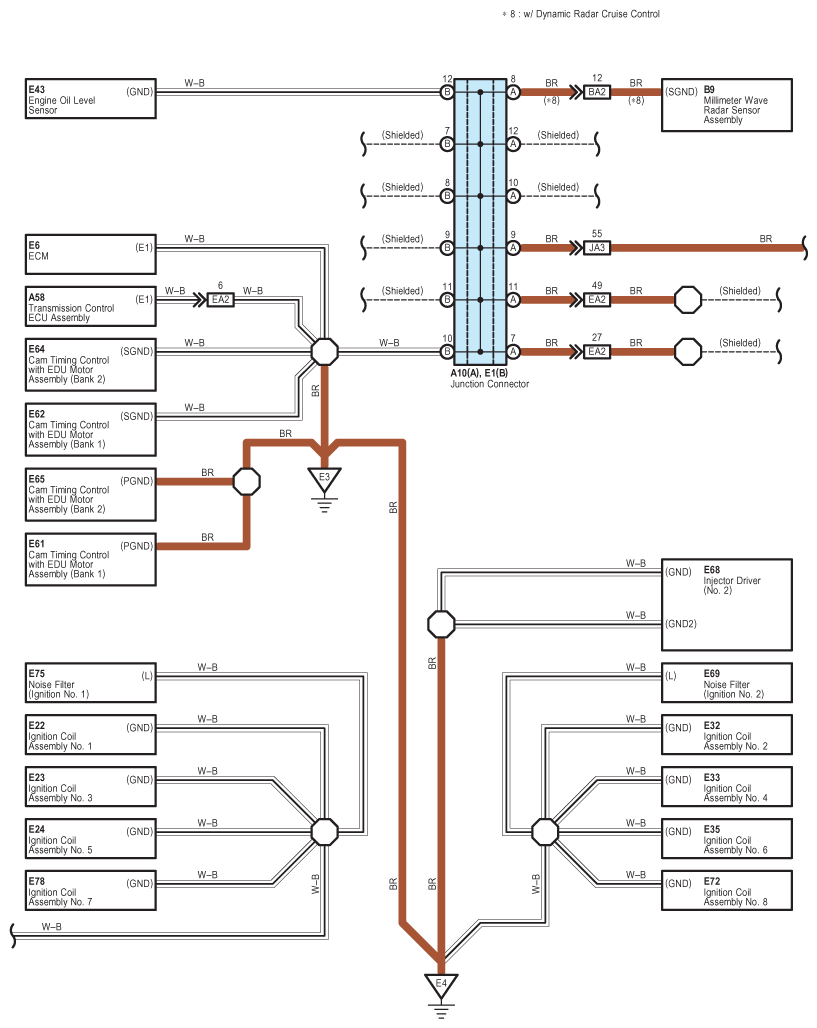

Fig 4: Ground Point - Wiring Diagram (4 Of 9)

G07592479

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

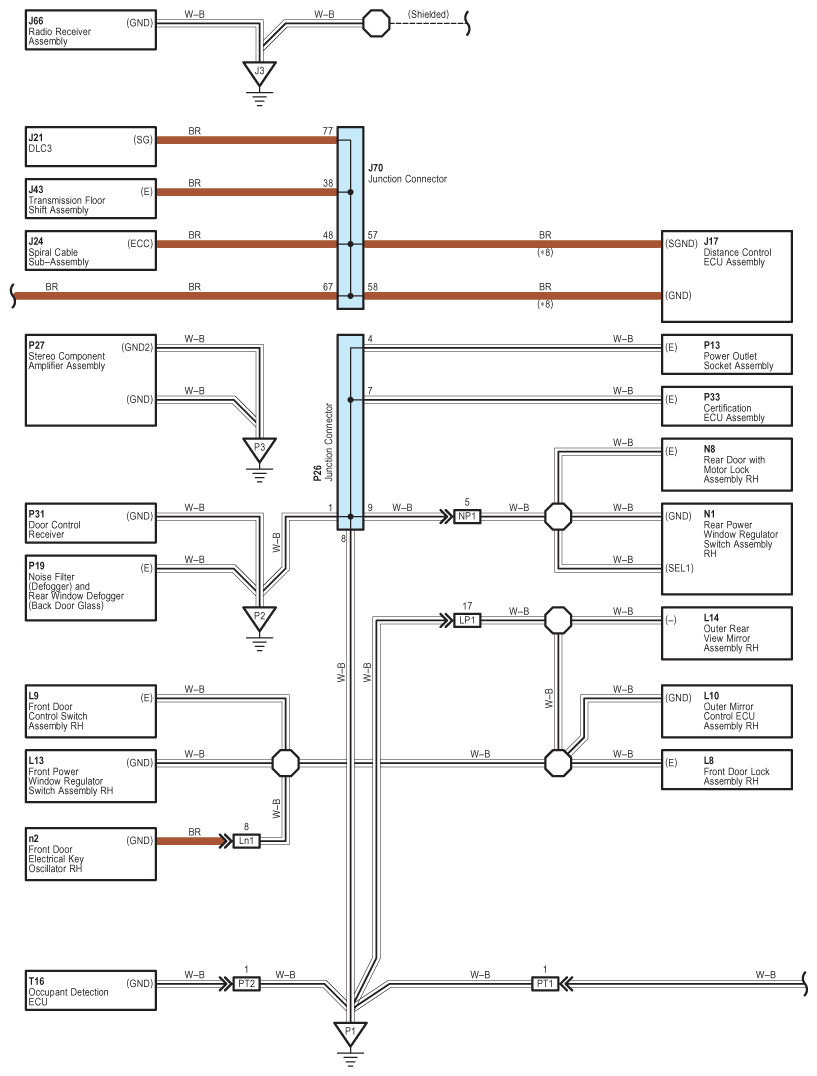

Fig 5: Ground Point - Wiring Diagram (5 Of 9)

G07592480

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

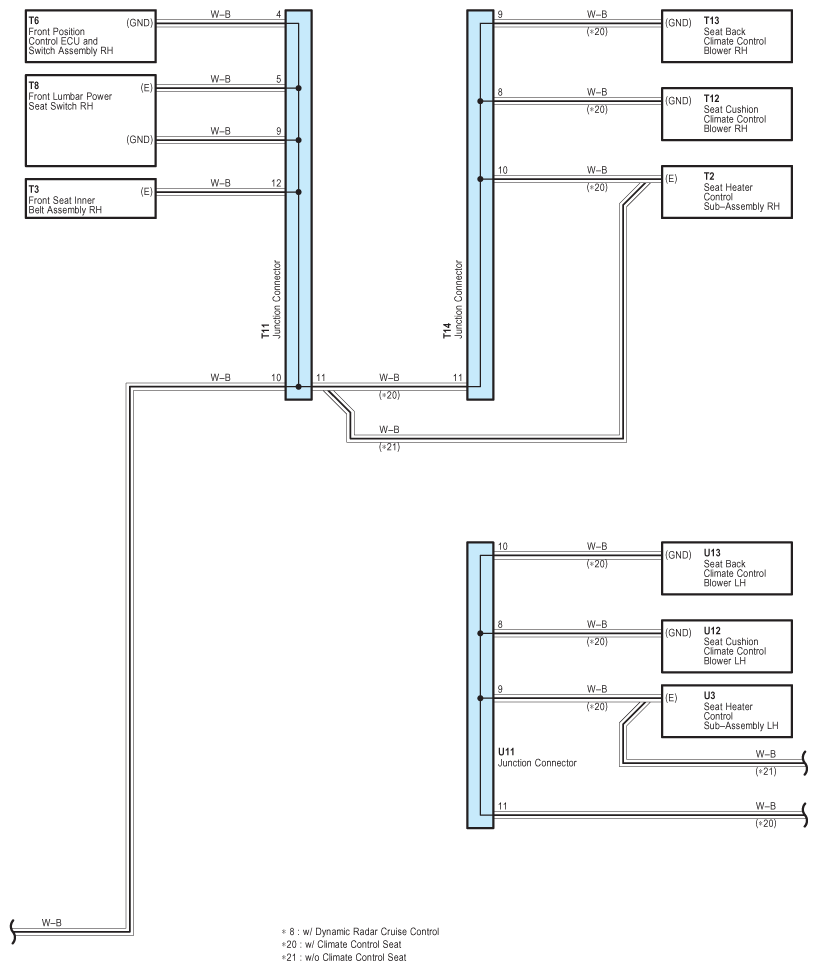

Fig 6: Ground Point - Wiring Diagram (6 Of 9)

G07592481

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

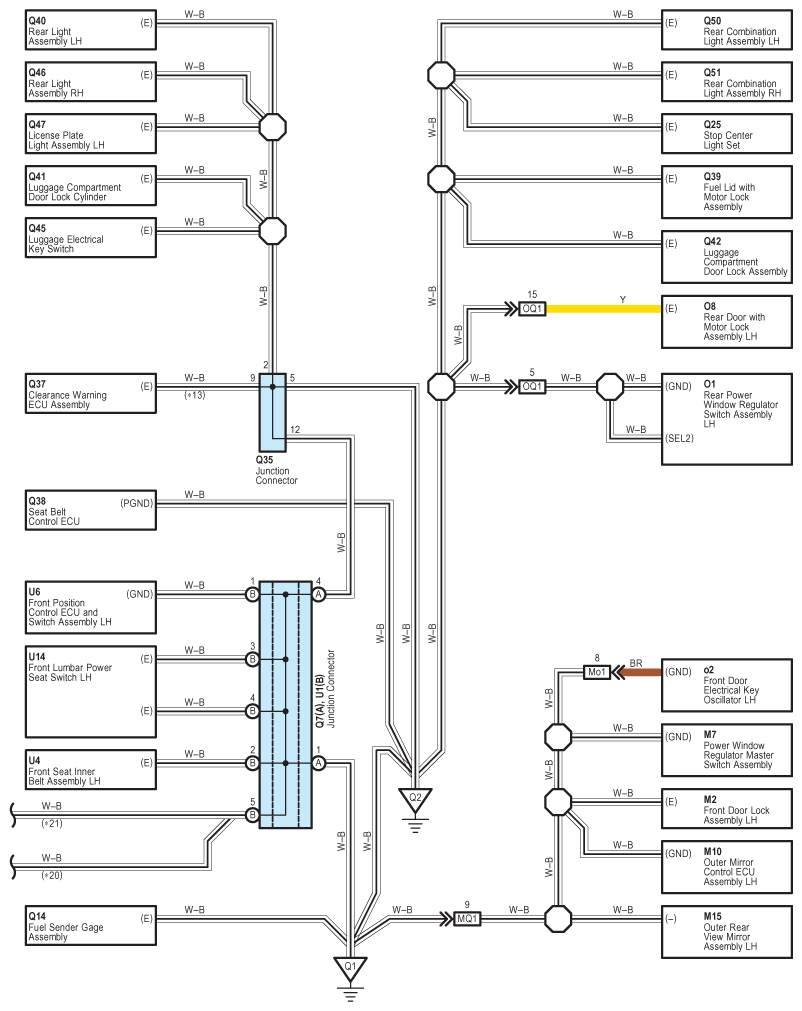

Fig 7: Ground Point - Wiring Diagram (7 Of 9)

G07592482

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

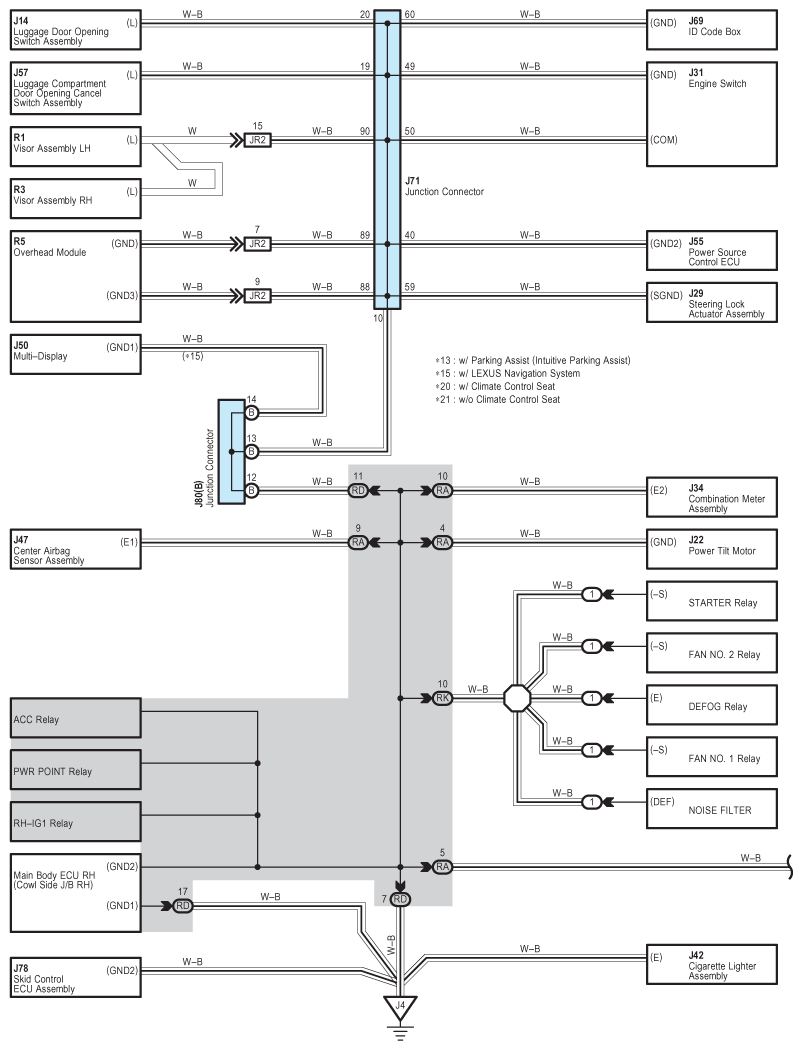

Fig 8: Ground Point - Wiring Diagram (8 Of 9)

G07592483

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

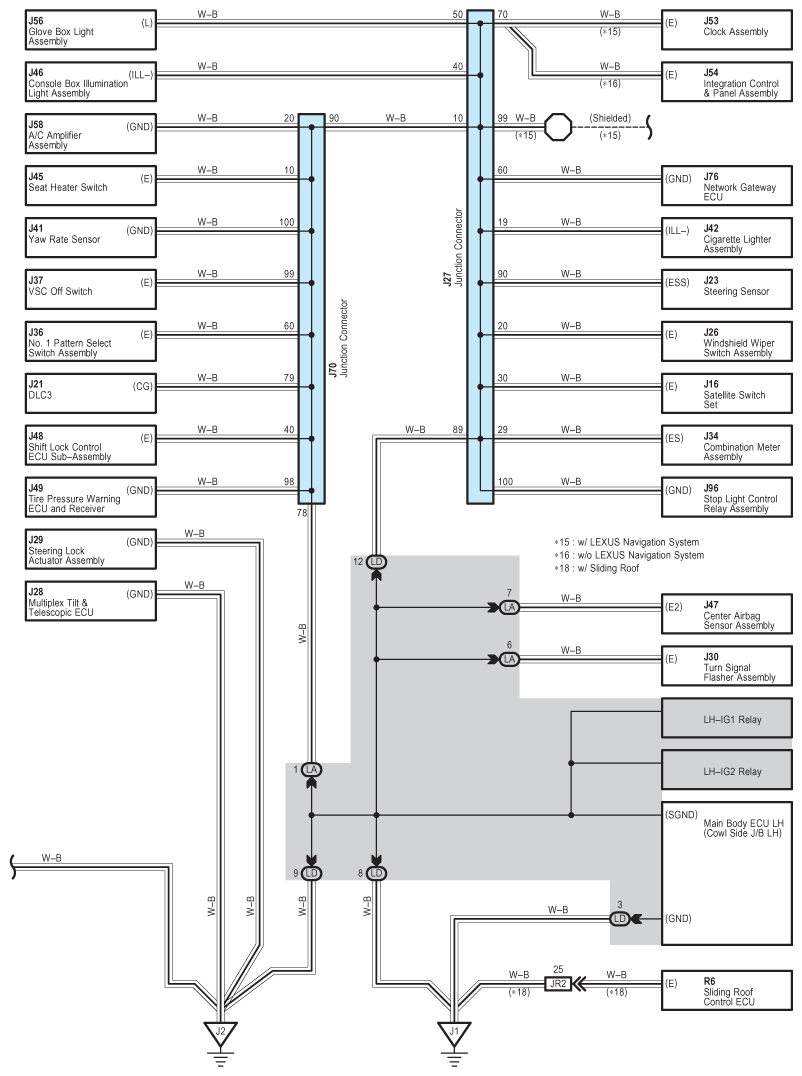

Fig 9: Ground Point - Wiring Diagram (9 Of 9)

G07592484

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
