Meter / Gauge System: Initialization

HINT

The ODO meter reset knob is located on the left side of the combination meter

1. Turn the engine switch on (IG)
2. Press the TRIP meter reset knob until the ODO meter appears
3. Turn the engine switch off
4. Turn the engine switch on (IG) while pressing and holding the trip meter reset knob Hold the trip meter reset knob until the following conditions are met and 5 seconds have passed.

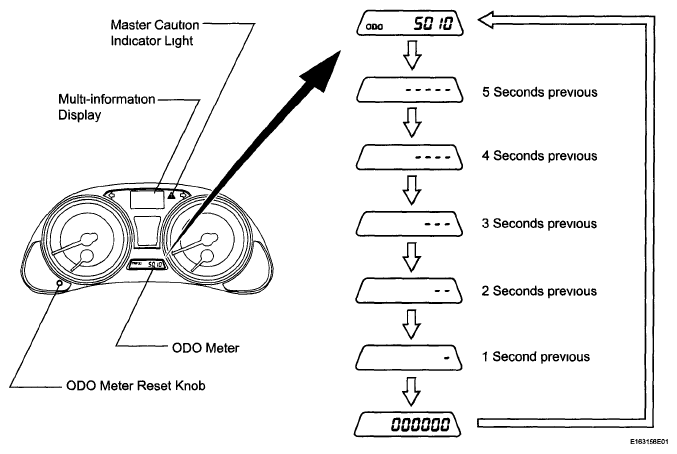

   Fig 1: ODO Meter Flow Chart

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   • The ODO meter shows "000000"
   • The master caution indicator light illuminates.
5. When "000000" disappears and the master caution indicator light turns off, the resetting procedure is complete
