System Diagram

  1. EMISSION CONTROL SYSTEM DIAGRAM

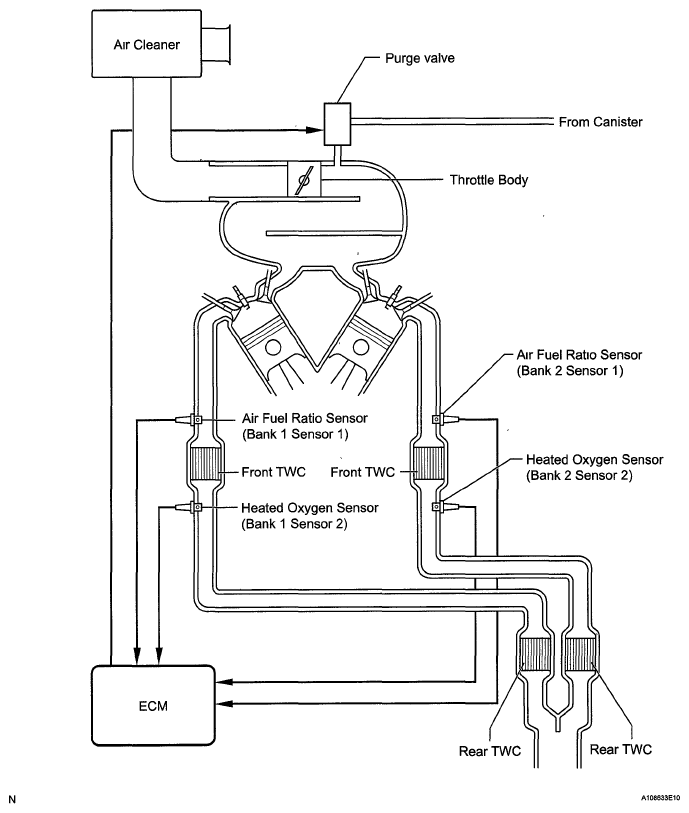

    Fig 1: Emission Control System Diagram
    G05750173Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. EVAP CONTROL SYSTEM DIAGRAM

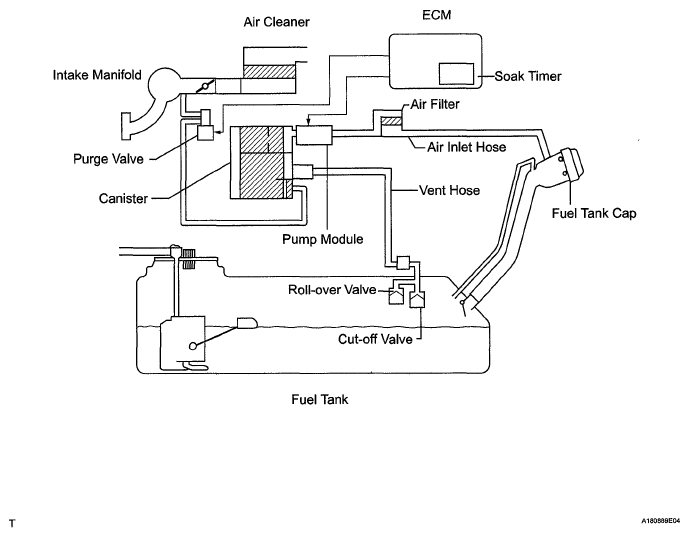

    Fig 2: EVAP Control System Diagram (1 Of 2)
    G05750174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

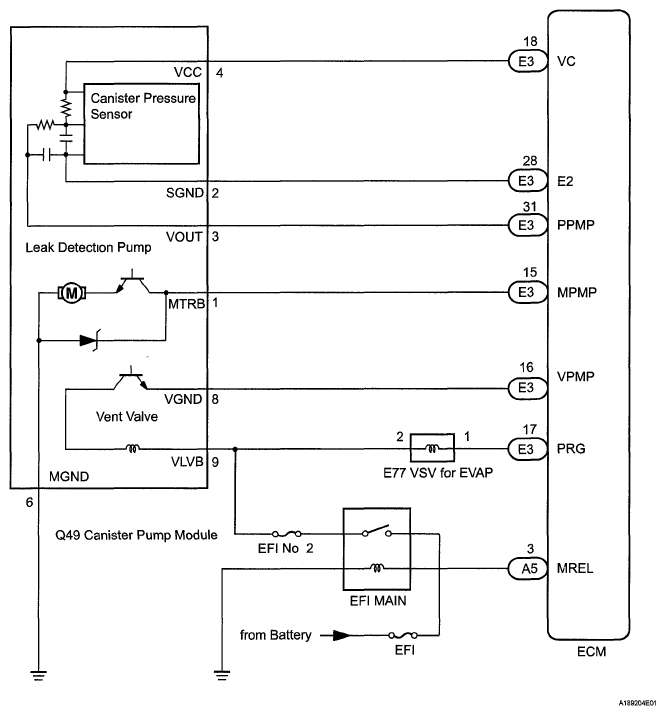

    Fig 3: EVAP Control System Diagram (2 Of 2)
    G05750175Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
