Oil Level Sensor: Installation

INSTALL ENGINE OIL LEVEL SENSOR
1. Install a new gasket to the engine oil level sensor.
2. Insert the engine oil level sensor into the oil pan and rotate it 180° clockwise.

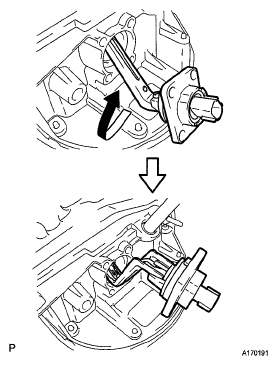

  Fig 1: Inserting Engine Oil Level Sensor Into Oil Pan
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the engine oil level sensor with the 4 bolts.
  Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)
4. Connect the engine oil level sensor connector.
Fig 2: Locating Engine Oil Level Sensor Connector Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CRANK POSITION SENSOR BRACKET
1. Install the crank position sensor bracket with the bolt
  Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)
2. Connect the harness clamp.
Fig 3: Locating Crank Position Sensor Bracket Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT OIL COOLER TUBE (See INSTALLATION )
ADD AUTOMATIC TRANSMISSION FLUID
(See AUTOMATIC TRANSMISSION FLUID )
ADD ENGINE OIL (See OIL AND OIL FILTER )
INSPECT FOR OIL LEAK
CHECK ENGINE OIL LEVEL (See LUBRICATION SYSTEM )
INSTALL FRONT LOWER SUSPENSION MEMBER PROTECTOR (See INSTALLATION )
INSTALL NO. 2 ENGINE UNDER COVER
INSTALL ENGINE UNDER COVER
