Oil Pump: Components

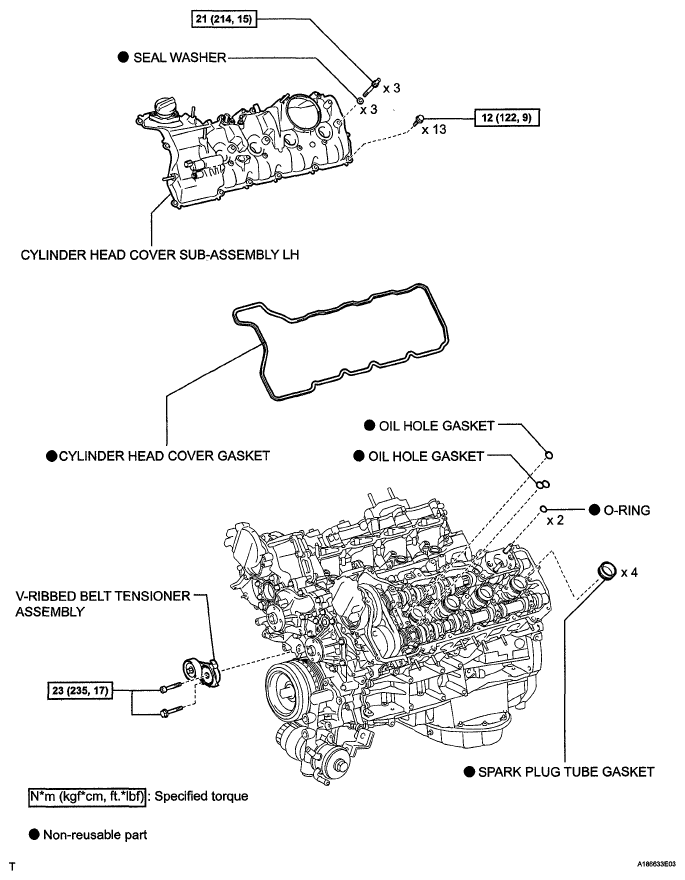

Fig 1: Identifying Oil Pump Replacement Components With Torque Specification (1 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

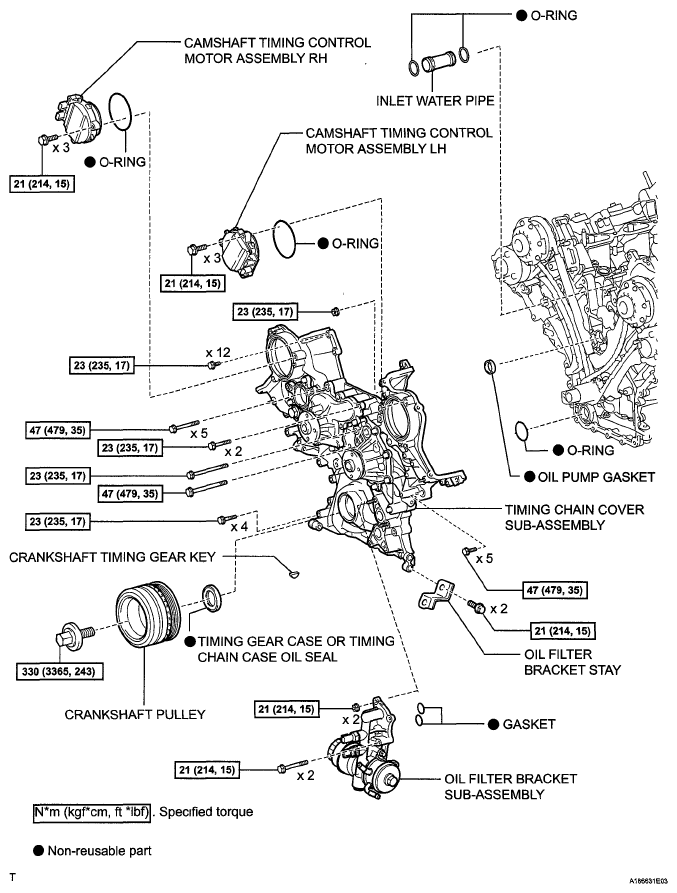

Fig 2: Identifying Oil Pump Replacement Components With Torque Specification (2 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

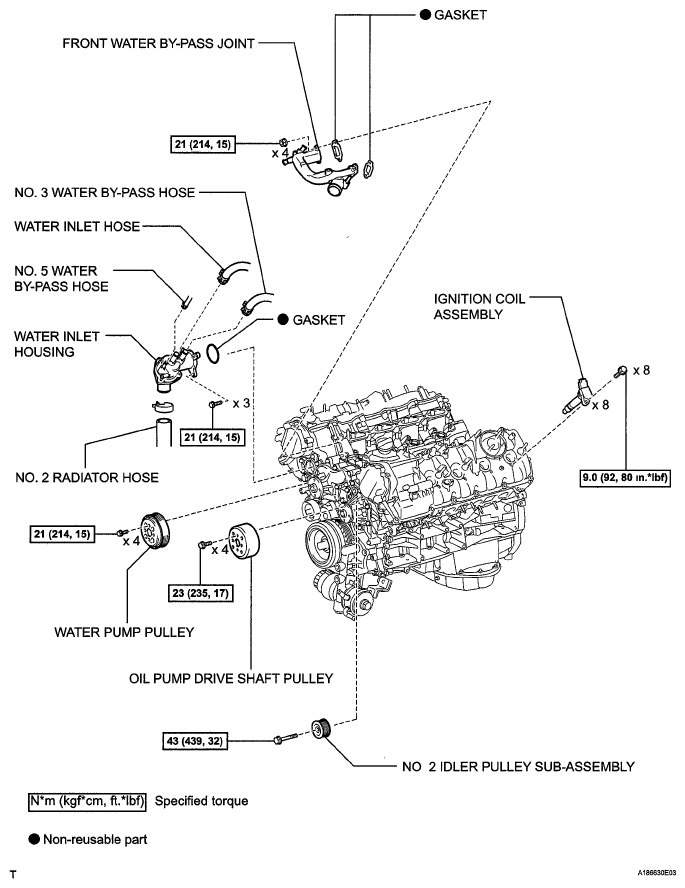

Fig 3: Identifying Oil Pump Replacement Components With Torque Specification (3 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

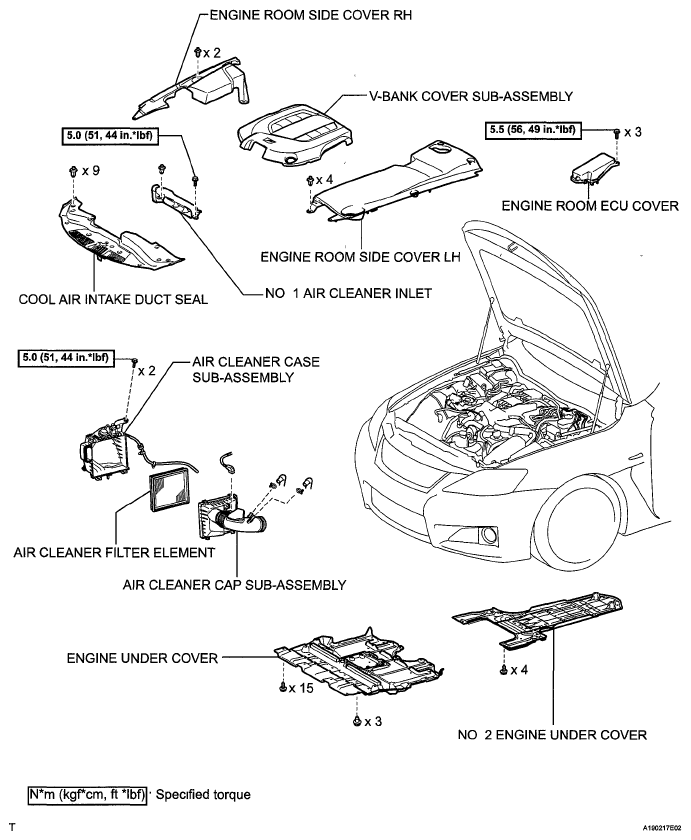

Fig 4: Identifying Oil Pump Replacement Components With Torque Specification (4 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

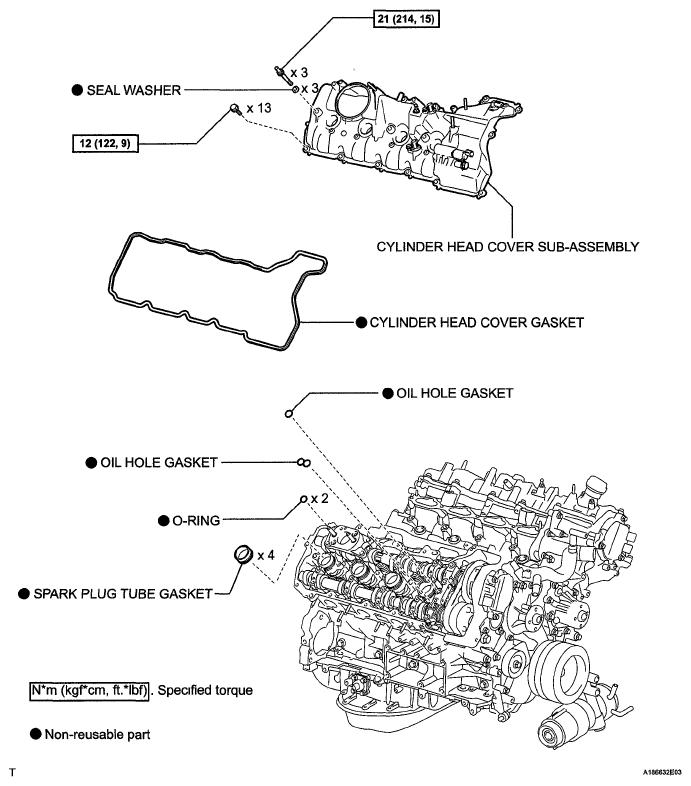

Fig 5: Oil Pump Replacement Components With Torque Specifications (5 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

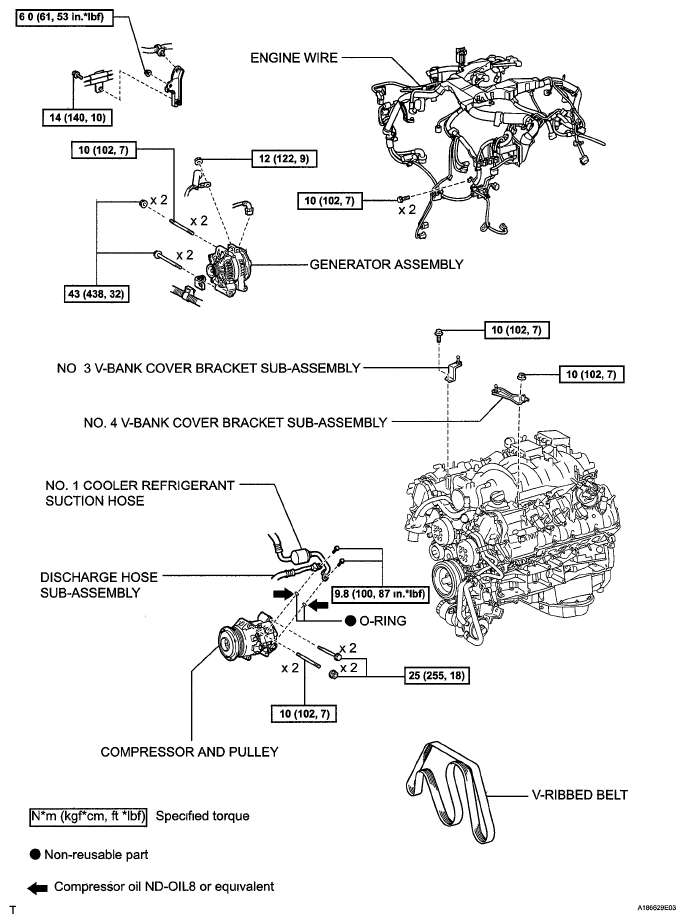

Fig 6: Oil Pump Replacement Components With Torque Specifications (6 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

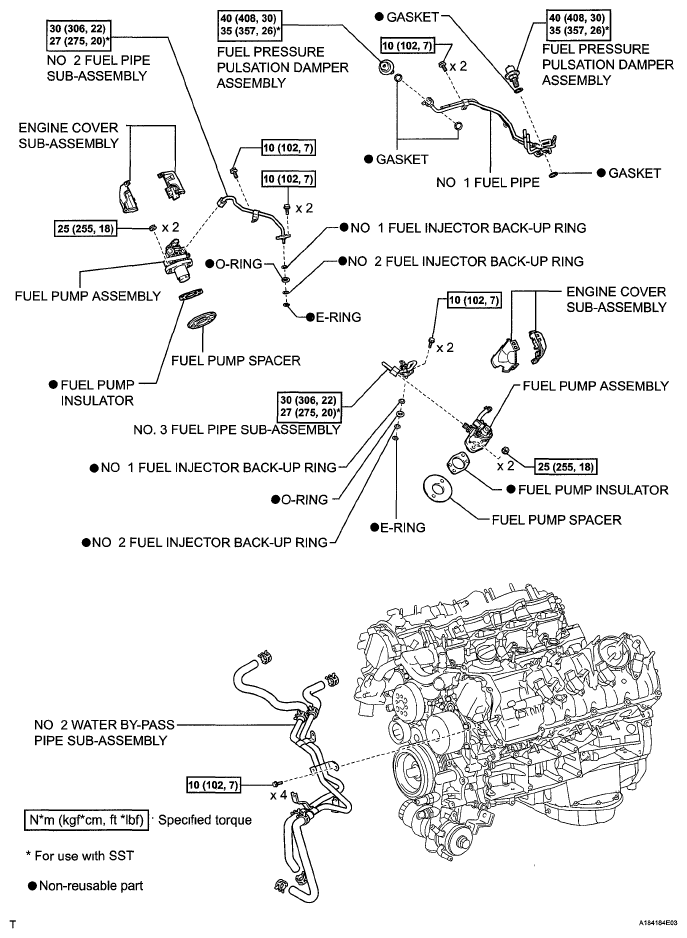

Fig 7: Identifying Oil Pump Replacement Components With Torque Specification (7 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

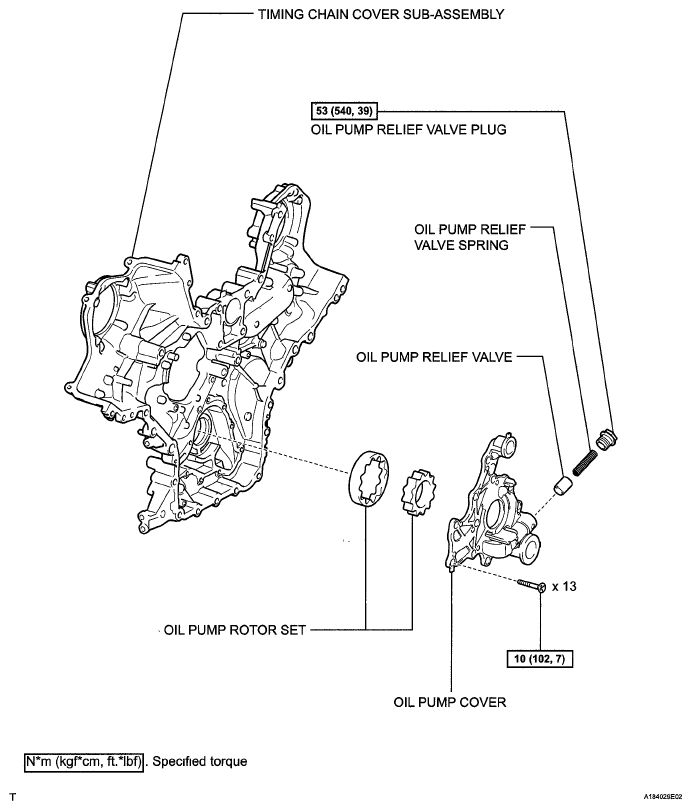

Fig 8: Identifying Oil Pump Replacement Components With Torque Specification (8 Of 11)

Fig 9: Oil Pump Replacement Components With Torque Specifications (9 Of 11)

Fig 10: Identifying Oil Pump Replacement Components With Torque Specification (10 Of 11)

Fig 11: Oil Pump Replacement Components With Torque Specifications (11 Of 11)
