Exhaust Pipe: Installation

1. Install 2 new gaskets to the exhaust manifold RH and exhaust manifold LH
2. Install the front exhaust pipe assembly with 4 new bolts and 4 new nuts.

Torque: 39 N*m (398 kgf*cm, 29 ft.*lbf)

Fig 1: Locating Front Exhaust Pipe Assembly Bolts And Nuts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Rotate the heated oxygen sensors 4 times counterclockwise, and then install them to the front exhaust pipe assembly by hand.
   Fig 2: Rotating Heated Oxygen Sensors

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

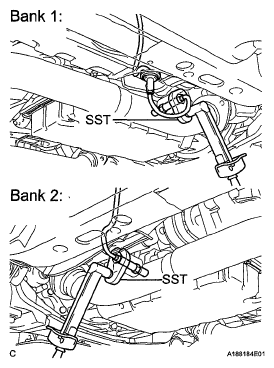

2. Using SST, tighten the 2 heated oxygen sensors.

   SST 09224-00010

   Torque:

   with SST

   40 N*m (408 kgf*cm, 30 ft.*lbf)

   without SST

   44 N*m (449 kgf*cm, 32 ft.*lbf)

   HINT:

   • Use a torque wrench with a fulcrum length of 30 cm (11.8 in.). If the fulcrum length is not as specified, calculate the torque value based on the specification for when SST is not used (See REPAIR INSTRUCTION ).
   • Make sure that SST and the wrench are connected in a straight line
   Fig 3: Tightening Heated Oxygen Sensors

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

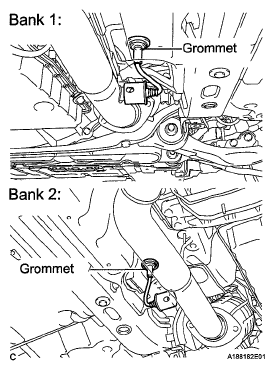

3. Connect the 2 grommets to the floor panel.

Fig 4: Identifying Heated Oxygen Sensors Grommets

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the front center floor brace with the 4 bolts.

Torque: 7.4 N*m (76 kgf*cm, 66 in.*lbf)

Fig 5: Locating Front Center Floor Brace Bolts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the rear No 1 floor panel brace with the 4 bolts.

Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)

Fig 6: Locating Rear No. 1 Floor Panel Brace Bolts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the damper with the 2 bolts.

Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)

Fig 7: Locating Exhaust Pipe Damper Bolts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a vernier caliper, measure the free length of the compression spring.

   Minimum length:

   41.5 mm (1.634 in.)

   If the free length is less than the minimum, replace the compression spring

2. Fully insert a new gasket to the front exhaust pipe assembly.
   Fig 8: Measuring Free Length Of Compression Spring

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using a plastic hammer and wooden block, tap in the new gasket until its surface is flush with the front exhaust pipe assembly
   NOTE:

   • Be sure to install the gasket in the correct direction.
   • Do not reuse the gasket.
   • Do not damage the gasket.
   • Do not push in the gasket by using the exhaust pipe when connecting it.

   Fig 9: Identifying Front Exhaust Pipe Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Connect the tail exhaust pipe assembly to the 6 exhaust pipe supports
5. Install the tail exhaust pipe assembly with the 2 bolts and 2 compression springs

   Torque: 43 N*m (440 kgf*cm, 32 ft.*lbf)

Fig 10: Locating Compression Springs And Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
