FUEL INJECTOR (for Port Injection): Components

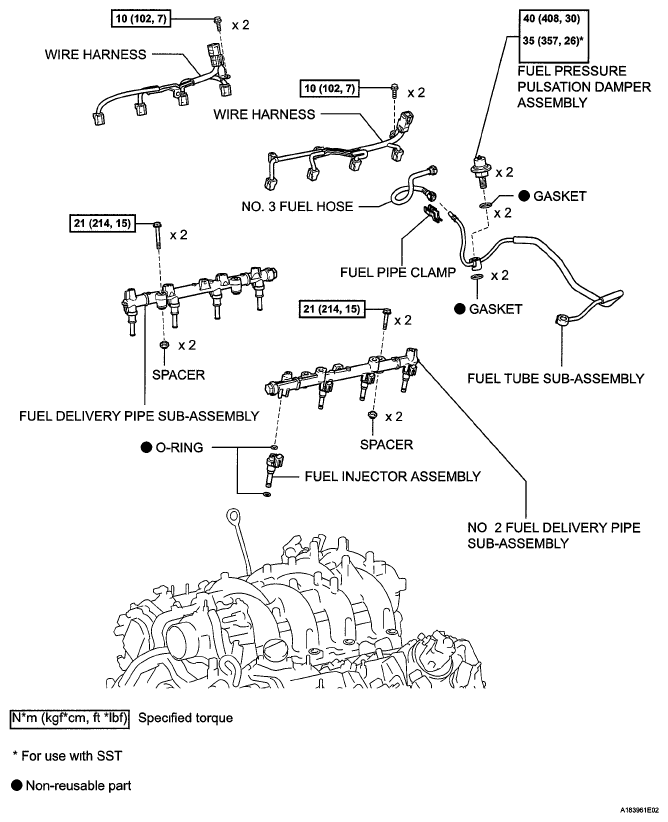

Fig 1: Fuel Injector Replacement Components (For Port Injection) With Torque Specifications
G05749932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
