FUEL PRESSURE PULSATION DAMPER (for Port Injection): Components

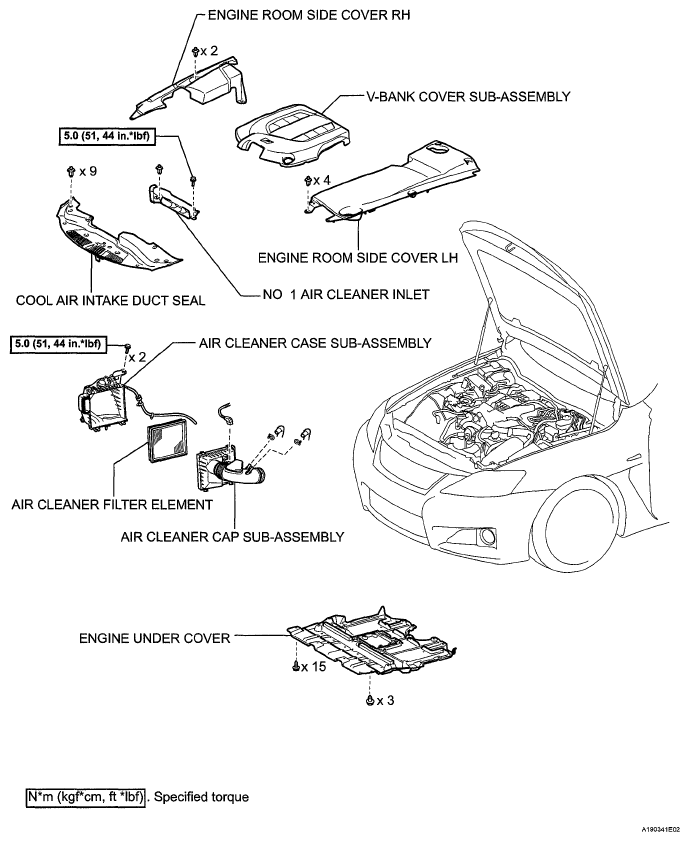

Fig 1: Identifying Fuel Pressure Pulsation Damper Replacement Components - For Port Injection With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

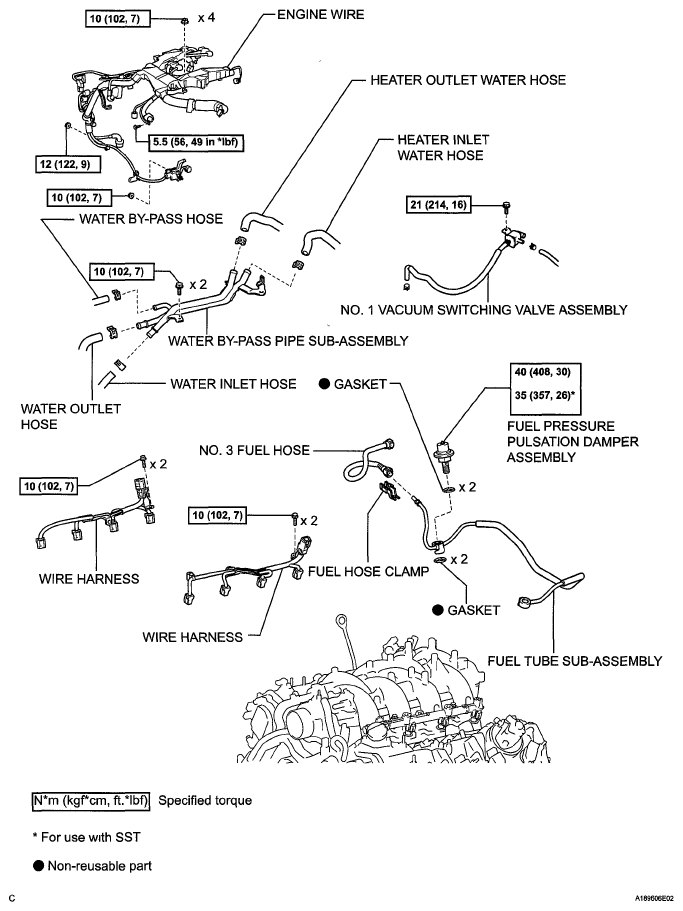

Fig 2: Fuel Pressure Pulsation Damper Replacement Components - For Port Injection With Torque Specifications (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
