FUEL PRESSURE PULSATION DAMPER (for Port Injection): Installation

INSTALL FUEL PRESSURE PULSATION DAMPER ASSEMBLY (for Port Injection)
1. Temporarily install the 2 fuel pressure pulsation damper assemblies together with 4 new gaskets and the fuel tube sub-assembly
2. Using SST, tighten the 2 fuel pressure pulsation damper assemblies
  SST 09612-24014 (09617-24011)

  Torque: without SST

  40 N*m (408 kgf*cm, 30 ft.*lbf)

  with SST

  35 N*m (357 kgf*cm, 26 ft.*lbf)

  HINT.
  - Use a torque wrench with a fulcrum length of 30 cm (11.81 in).
  - Make sure that SST and the wrench are connected in a straight line.

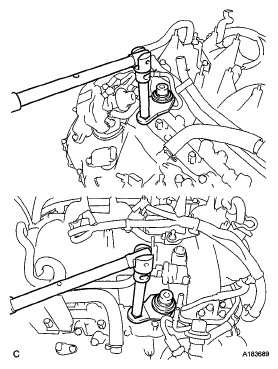

  Fig 1: Tightening Fuel Pressure Pulsation Damper Assemblies
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the wire harness with the 2 bolts.
  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
4. Connect the 4 connectors

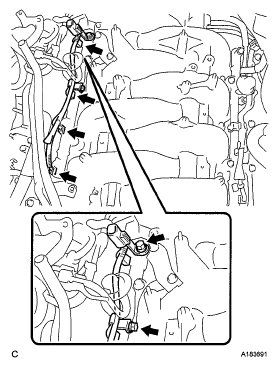

  Fig 2: Locating Wire Harness Bolts And Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Install the wire harness with the 2 bolts
  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

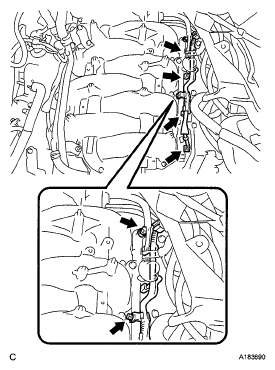

  Fig 3: Locating Wire Harness Bolts And Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Connect the 4 connectors
INSTALL NO. 3 FUEL HOSE (See INSTALLATION )
INSTALL WATER BY-PASS PIPE SUB-ASSEMBLY (See INSTALLATION )
INSTALL NO. 1 VACUUM SWITCHING VALVE ASSEMBLY (See INSTALLATION )
CONNECT ENGINE WIRE (See INSTALLATION )
INSTALL AIR CLEANER CASE SUB-ASSEMBLY (See INSTALLATION )
INSTALL AIR CLEANER CAP SUB-ASSEMBLY (See INSTALLATION )
INSTALL NO. 1 AIR CLEANER INLET (See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See INITIALIZATION ).
ADD ENGINE COOLANT (See WATER PUMP )
INSPECT FOR COOLANT LEAK (See COOLING SYSTEM )
INSPECT FOR FUEL LEAK (See ON-VEHICLE INSPECTION )
INSTALL ENGINE ROOM SIDE COVER LH (See ENGINE UNIT )
INSTALL ENGINE ROOM SIDE COVER RH (See ENGINE UNIT )
INSTALL COOL AIR INTAKE DUCT SEAL (See ENGINE UNIT )
INSTALL V-BANK COVER SUB-ASSEMBLY (See ENGINE UNIT )
INSTALL ENGINE UNDER COVER
