FUEL PRESSURE PULSATION DAMPER (for Port Injection): Removal

PRECAUTION
REMOVE V-BANK COVER SUB-ASSEMBLY (See REMOVAL )
REMOVE COOL AIR INTAKE DUCT SEAL (See REMOVAL )
REMOVE ENGINE ROOM SIDE COVER RH (See REMOVAL )
REMOVE ENGINE ROOM SIDE COVER LH (See REMOVAL )
DISCHARGE FUEL SYSTEM PRESSURE
1. Discharge fuel system pressure (See FUEL SYSTEM )
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See INITIALIZATION ).
REMOVE NO. 1 AIR CLEANER INLET (See REMOVAL )
REMOVE AIR CLEANER CAP SUB-ASSEMBLY (See REMOVAL )
REMOVE AIR CLEANER CASE SUB-ASSEMBLY (See REMOVAL )
REMOVE ENGINE UNDER COVER
DRAIN ENGINE COOLANT (See COOLANT )
SEPARATE ENGINE WIRE (See REMOVAL )
REMOVE NO. 1 VACUUM SWITCHING VALVE ASSEMBLY (See REMOVAL )
REMOVE WATER BY-PASS PIPE SUB-ASSEMBLY (See INSTALLATION )
REMOVE NO. 3 FUEL HOSE (See REMOVAL )
REMOVE FUEL PRESSURE PULSATION DAMPER ASSEMBLY (for Port Injection)
1. Disconnect the 4 connectors.
2. Remove the 2 bolts and wire harness.

  Fig 1: Locating Wire Harness Bolts And Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disconnect the 4 connectors.
4. Remove the 2 bolts and wire harness

  Fig 2: Locating Wire Harness Bolts And Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

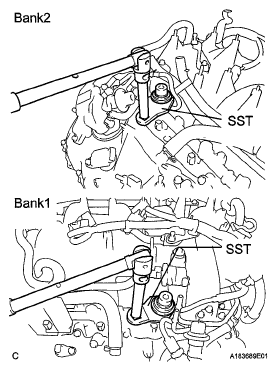

5. Using SST, loosen the 2 fuel pressure pulsation dampers.
  SST 09612-24014 (09617-24011)

  Fig 3: Loosening Fuel Pressure Pulsation Dampers
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Remove the fuel tube sub-assembly with the 4 gaskets.
