Fuel Sender Gauge Assembly: Inspection

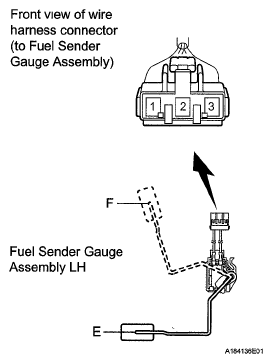

- INSPECT FUEL SENDER GAUGE ASSEMBLY
- Disconnect the fuel sender gauge connector
- Inspect the fuel sender gauge assembly.
- Remove the fuel sender gauge assembly
- Check that the float moves smoothly between F and E
- Measure the resistance between terminals 2 (S) and 1 (FE) of the connector according to the value(s) in the table below
Standard Resistance
RESISTANCE SPECIFICATIONFloat Level Resistance (Ω) F 6.5 to 8.5 Between E and F 6.5 to 229.6 (Gradually changes) E 224.6 to 229 6 HINT.
If the value is not as specified, replace the fuel sender gauge assembly LH

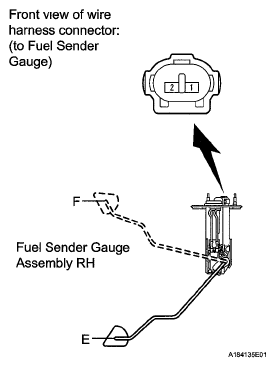

- INSPECT FUEL SENDER GAUGE
- Disconnect the fuel sender gauge connector
- Inspect the fuel sender gauge assembly
- Remove the fuel sender gauge assembly.
- Check that the float moves smoothly between F and E
- Measure the resistance between terminals 1 (FS) and 2 (E) according to the value(s) in the table below
Standard Resistance
RESISTANCE SPECIFICATIONFloat Level Resistance (Ω) F 6.5 to 8 5 Between E and F 6.5 to 184.9 (Gradually changes) E 180.9 to 184 9 HINT
If the result is not as specified, replace the fuel sender gauge assembly RH
