DTC P0500 Vehicle Speed Sensor "A": Description

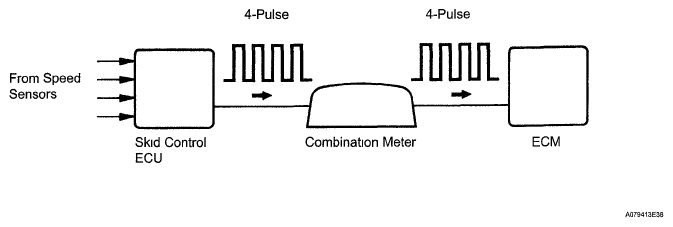

The speed sensor detects the wheel speed and sends the appropriate signals to the skid control ECU The skid control ECU converts these wheel speed signals into a 4-pulse signal and outputs it to the ECM via the combination meter. The ECM determines the vehicle speed based on the frequency of these pulse signals
DTC DETECTION CONDITION CHART
| DTC No | DTC Detection Condition | Trouble Area |
|---|---|---|
| P0500 | While vehicle being driven, no vehicle speed sensor signal to ECM (1-tip detection logic) |
|
