Accelerator Pedal: Removal: Removal

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE ACCELERATOR PEDAL
1. Disconnect the accelerator pedal connector.

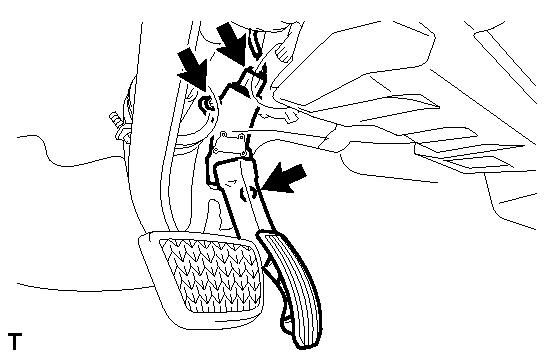

  Fig 1: Locating Accelerator Pedal Assembly With Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 nuts and the accelerator pedal assembly.
