Knock Sensor: Inspection: Inspection
WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

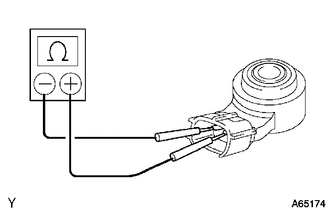

- INSPECT KNOCK CONTROL SENSOR
- Using an ohmmeter, measure the resistance between the terminals.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Resistance
120 to 280 kΩ at 20°C (68°F)
If the result is not as specified, replace the sensor.
