Front Seat Inner Belt Assembly: Installation

INSTALL FRONT SEAT INNER BELT ASSEMBLY
1. Install the front seat inner belt assembly with the nut.
  Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

  NOTE: Do not allow the anchor part of the front seat inner belt assembly to overlap the protruding part of the front seat adjuster.

  Fig 1: Identifying Front Seat Inner Belt Assembly And Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. for Driver Seat:
  1. Connect the connector and engage the 3 clamps.
3. for Passenger Seat:
  1. Connect the connector and engage the 4 clamps.

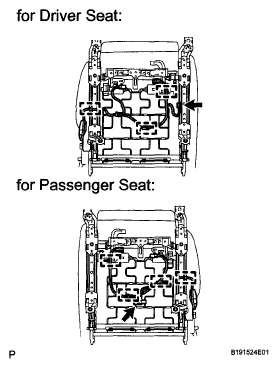

  Fig 2: Identifying Front Seat Inner Belt Assembly Connector And Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT SEAT ASSEMBLY (See INSTALLATION )
INSTALL REAR INNER SEAT TRACK COVER (See INSTALLATION )
INSTALL REAR OUTER SEAT TRACK COVER (See INSTALLATION )
INSTALL FRONT INNER SEAT TRACK BRACKET COVER (See INSTALLATION )
INSTALL FRONT OUTER SEAT TRACK BRACKET COVER (See INSTALLATION )
INSTALL FRONT SEAT HEADREST ASSEMBLY
INSPECT FRONT SEAT ASSEMBLY
(See INSTALLATION )
INSPECT SRS WARNING LIGHT
Inspect the SRS warning light (See DIAGNOSIS SYSTEM ).
