On-Vehicle Inspection

  1. BEFORE REFILL TRANSMISSION
    • This transmission requires Toyota Genuine ATF WS transmission fluid.
    • After servicing the transmission, you must refill the transmission with the correct amount of fluid.
    • Maintain the vehicle in a horizontal position while adjusting the fluid level
    • If the entire transmission, transmission pan, drain plug, valve body and/or torque converter is removed and installed, proceed to Fill Transmission Pan with Fluid.
    • If the transmission hose, output shaft oil seal and/or radiator is replaced, remove the refill plug, and then proceed to Fill Transmission
  2. FILL TRANSMISSION PAN WITH FLUID
    1. Remove the refill plug and overflow plug

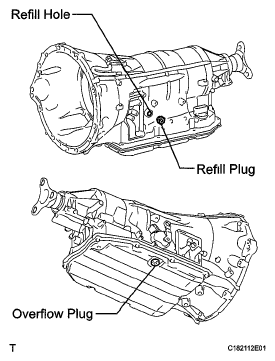

      Fig 1: Identifying Refill Plug And Overflow Plug
      G05750807Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Fill the transmission through the refill hole until fluid begins to trickle out from the overflow tube
    3. Reinstall the overflow plug
  3. FILL TRANSMISSION
    1. Fill the transmission with the amount of fluid listed in the table below.
    2. Reinstall the refill plug to prevent the fluid from spilling out
      Fig 2: Identifying Transmission Fluid Level
      G05750808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Capacity

      FLUID CAPACITY SPECIFICATION

      Repair Specified Condition
      Transmission pan and drain plug removal 3.7 liters (3 91 US qts, 3.26 lmp. qts)
      Transmission valve body removal 4.7 liters (4.97 US qts, 4.14 lmp qts)
      Torque converter removal 6.7 liters (7.1 US qts, 5.9 lmp. qts)

      HINT.

      If the amount of fluid listed in the table cannot be added, perform the next step

    3. When the amount of fluid listed in the table cannot be added.
      1. Install the refill plug.
      2. Allow the engine to idle with the air conditioning off
      3. Move the shift lever through the entire gear range to circulate fluid
      4. Wait 30 seconds with the engine idling.
      5. Stop the engine
      6. Remove the refill plug and add fluid.
      7. Reinstall the refill plug
  4. PERFORM FLUID CIRCULATION
    1. Allow the engine to idle with the air conditioning off
    2. Move the shift lever through the entire gear range to circulate fluid.
  5. CHECK FLUID TEMPERATURE
    1. With the Techstream.
      1. Connect the Techstream to the DLC3
      2. Enter the following menus: Powertrain / Engine / Active Test / Connect the TC and TE1
      3. Slowly move the shift lever from P to M. Then return the shift lever to P
      4. Move the shift lever to D, them quickly move it back and forth between N and D (at least once every 1.5 seconds) for at least 6 seconds This will activate the fluid temperature detection mode.

        HINT.

        While moving the shift lever between N and D a few times, the N indicator in the combination meter will not illuminate for 4 seconds even if the shift lever is moved to N This indicates that the transmission fluid temperature detection mode has been entered

      5. Check A/T Oil Temperature 1.
      6. Return the shift lever to P and press OFF on the Active Test display.
      7. Allow the engine to idle until the fluid temperature reaches 35°C (95°F).

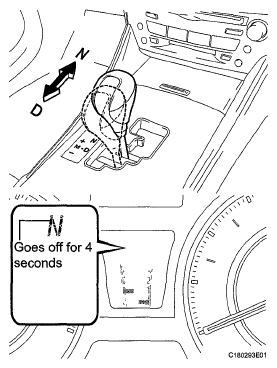

        Fig 3: Moving Shift Lever Between N And D
        G05750809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Without the Techstream (Using the D shift indicator)
      1. Using SST, connect terminals 13 (TC) and 4 (CG) of the DLC3

        SST 09843-18040

      2. Slowly move the shift lever from P to M Then return the shift lever to P
        Fig 4: Identifying DLC Connector Terminal
        G05295308Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Move the shift lever to D, then quickly move it back and forth between N and D (at least once every 1 5 seconds) for at least 6 seconds This will activate the fluid temperature detection mode.

        HINT

        While moving the shift lever between N and D a few times, the N indicator in the combination meter will not illuminate for 4 seconds even if the shift lever is moved to N This indicates that the transmission fluid temperature detection mode has been entered

      4. Return the shift lever to P and disconnect terminals 13 (TC) and 4 (CG)
      5. The P indicator turns on again when the fluid temperature reaches 35°C (95°F) and blinks when it exceeds 42°C (108°F).
      6. Allow the engine to idle until the fluid temperature reaches 35°C (95°F)

        HINT

        The fluid temperature should be less than 30°C (86°F) before starting the engine

        Fig 5: Moving Shift Lever Between N And D
        G05750809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. CHECK FLUID LEVEL
    NOTE: The fluid temperature must be between 35°C (95°F) and 42°C (108°F) to check the fluid level.
    1. When the indicator light (P) turns on, lift the vehicle up immediately

      Indicator Light will Indicate the ATF Temperature

      ATF TEMPERATURE SPECIFICATION

      Lower than Proper Temp Proper Temp Higher than Proper Temp
      Off Turns on Blinking
      NOTE: Perform fluid level inspection while the indicator light is on.
    2. Remove the overflow plug with the engine idling
      Fig 6: Identifying Indicator Light
      G05750812Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Check that the fluid comes out of the overflow tube. If fluid does not come out, proceed to the next step. If fluid comes out, wait until the overflow slows to a trickle and proceed to Complete.
  7. REFILL AUTOMATIC TRANSMISSION FLUID
    1. Install the overflow plug.
    2. Stop the engine
    3. Remove the refill plug
    4. Add 0 4 liters (0.42 US qts, 0.35 lmp qts) of fluid.
    5. Allow the engine to idle and wait for 10 seconds.
    6. Repeat Check Fluid Level.
      Fig 7: Identifying Transmission Fluid Level
      G05750808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. COMPLETE
    1. Install the overflow plug and a new gasket

      Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

    2. Stop the engine.
    3. Using SST, install the refill plug and a new gasket.

      SST 09961-01270

      Torque: without SST

      39 N*m (398 kgf*cm, 29 ft.*lbf)

      with SST

      23 N*m (239 kgf*cm, 17 ft.*lbf)

      NOTE:
      • The "with SST" torque value is effective when using SST with a fulcrum length of 200 mm (7.87 in.).
      • The "with SST" torque value is effective when using a torque wrench with a fulcrum length of 300 mm (11.81 in.) (See PRECAUTION ).
      • The "with SST" torque value is effective when SST is parallel to the torque wrench.
    4. Check the fluid leaks.

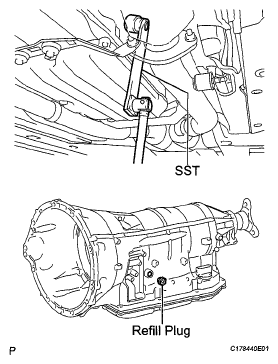

      Fig 8: Identifying Refill Plug With SST
      G05750814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
