Shift Paddle Switch Circuit: Wiring Diagram

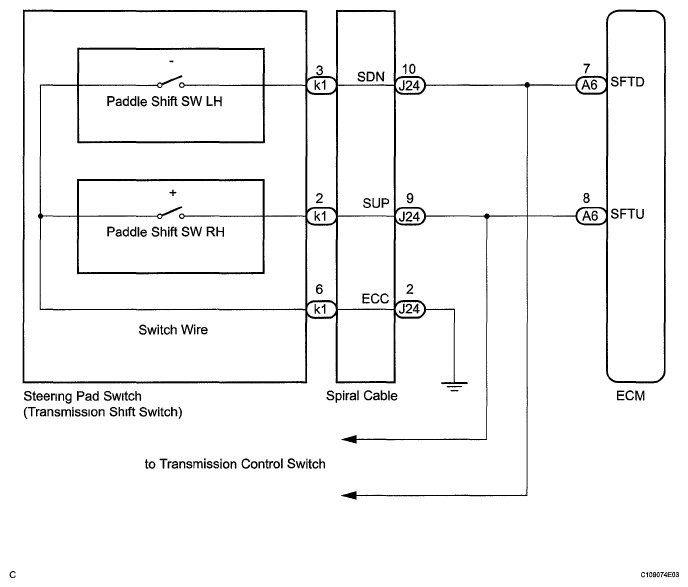

Fig 1: Shift Paddle Switch - Wiring Diagram
G05750790Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
