Transmission Control Switch Circuit: Wiring Diagram

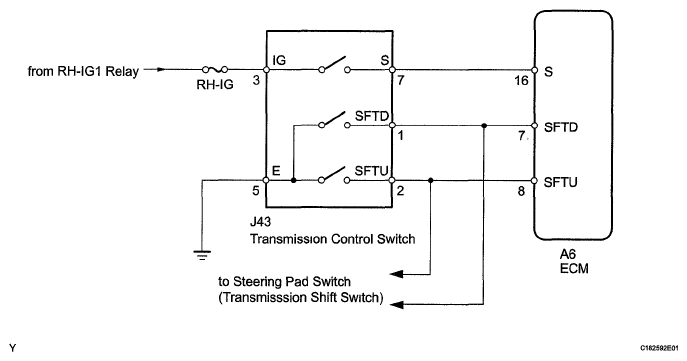

Fig 1: Transmission Control Switch - Wiring Diagram
G05750784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
