Control Module, A/T

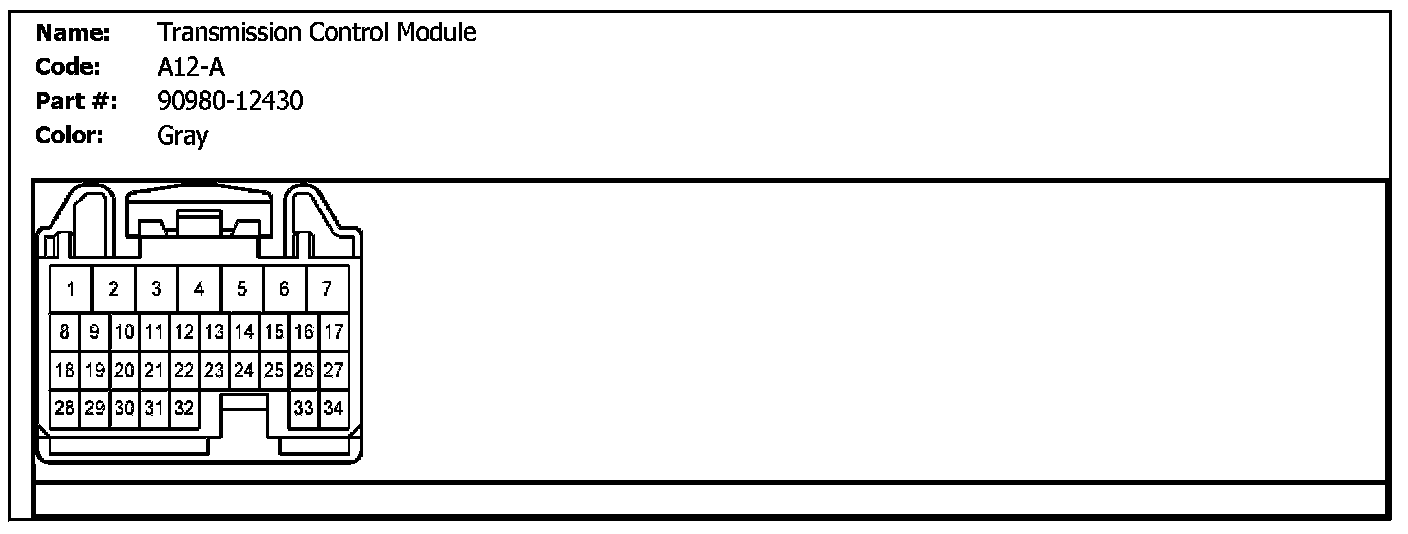

A12-A (Transmission Control Module):

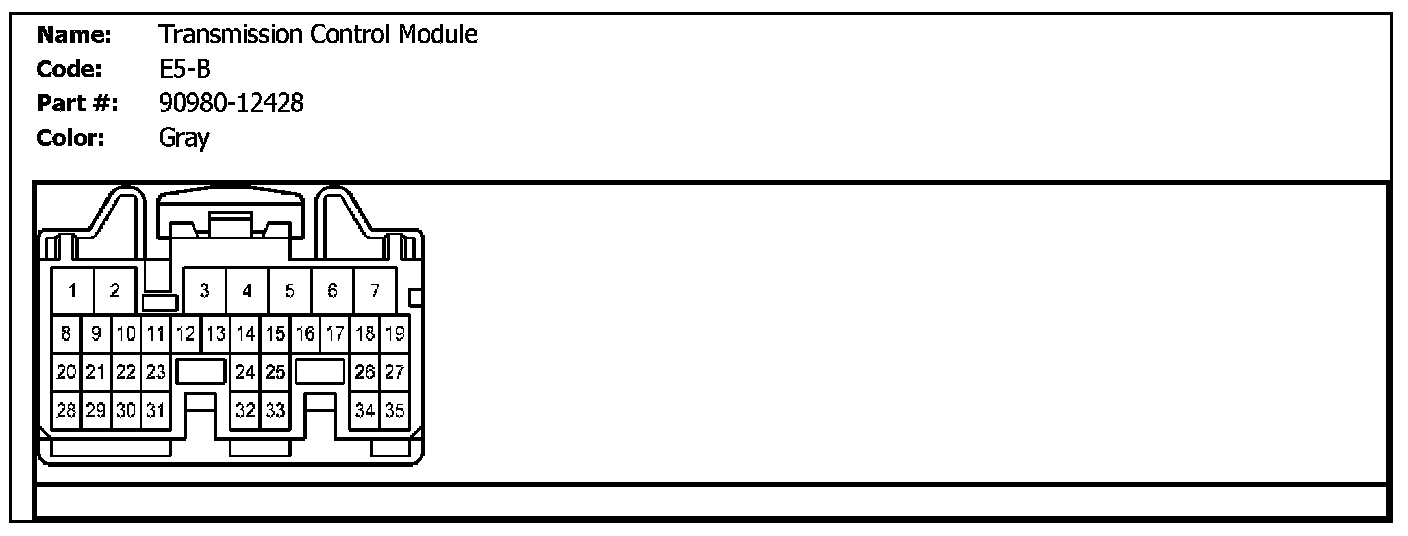

E5-B (Transmission Control Module):

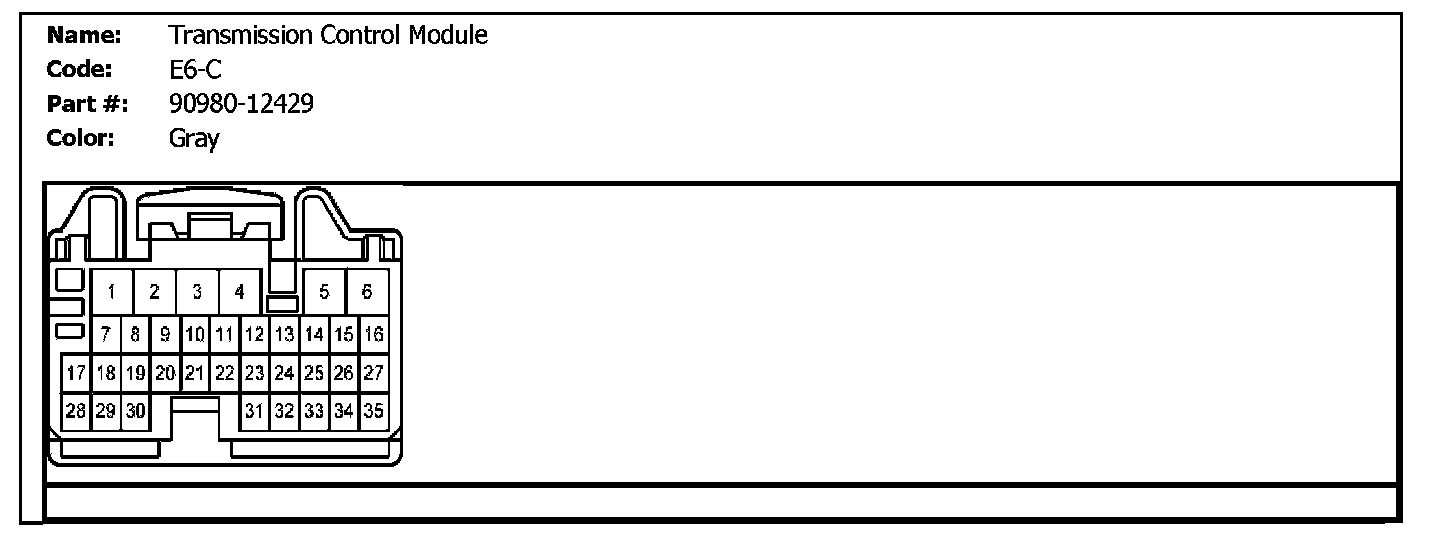

E6-C (Transmission Control Module):

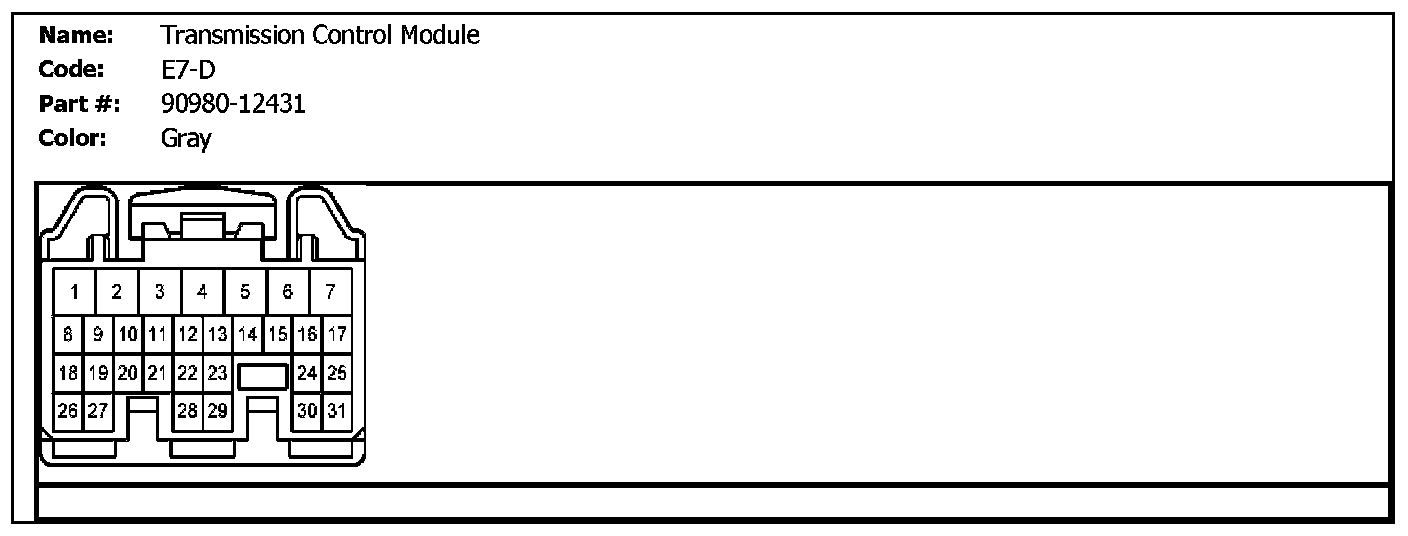

E7-D (Transmission Control Module):
