Entertainment System Control Module

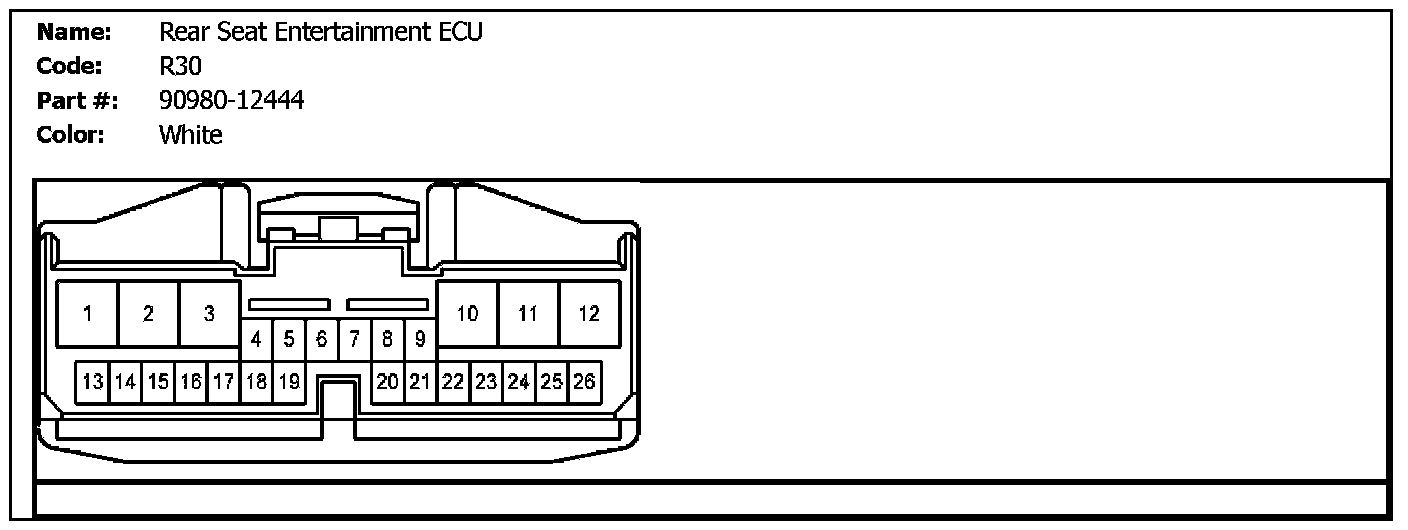

R30 (Rear Seat Entertainment ECU):

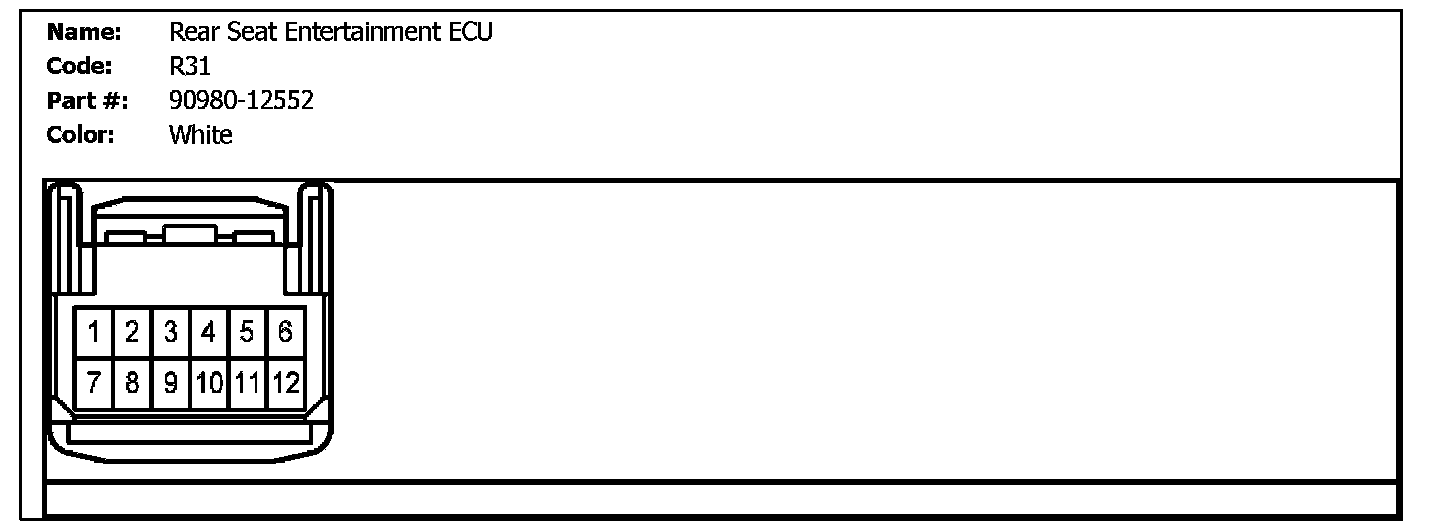

R31 (Rear Seat Entertainment ECU):

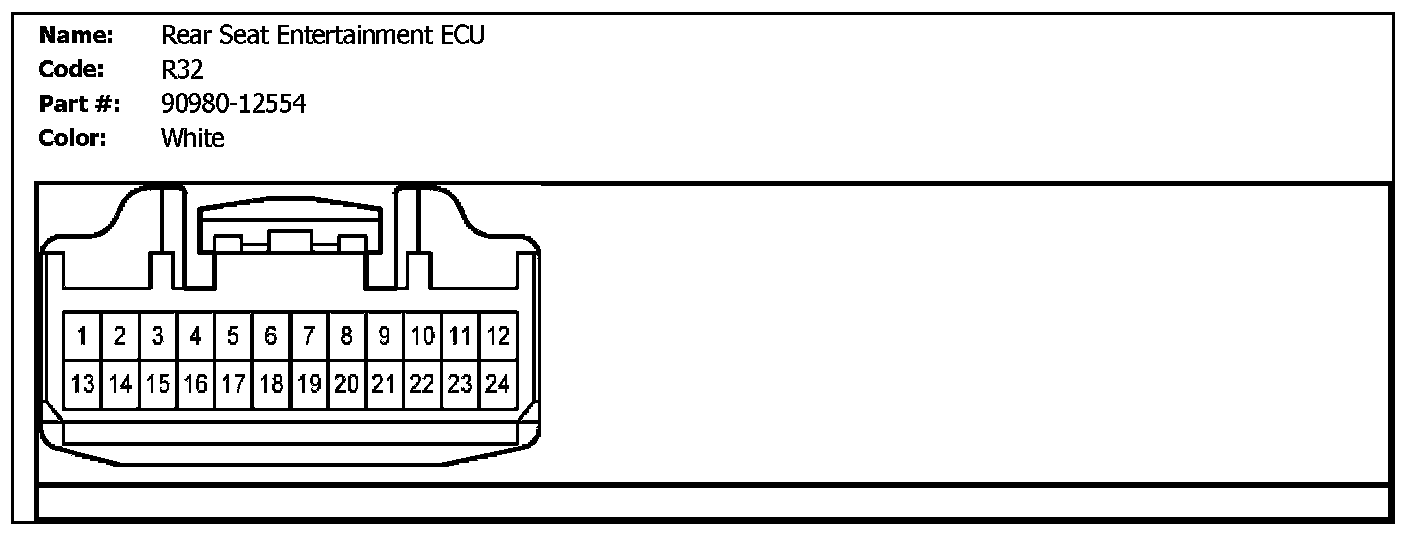

R32 (Rear Seat Entertainment ECU):

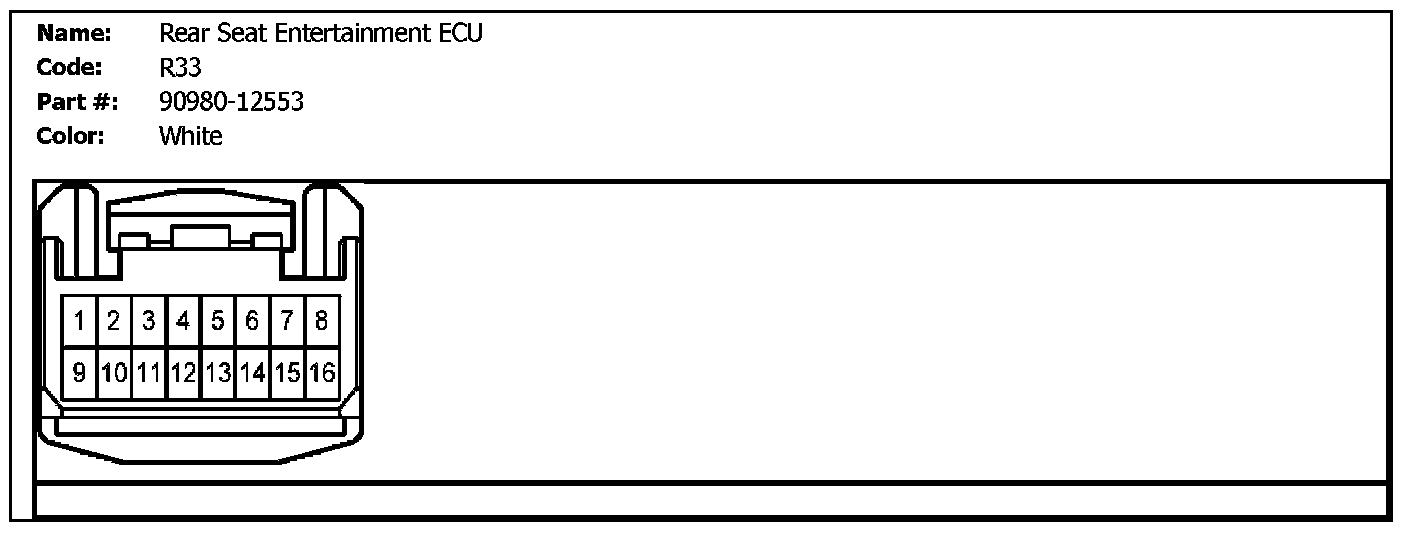

R33 (Rear Seat Entertainment ECU):
