Secondary Injector Control Module

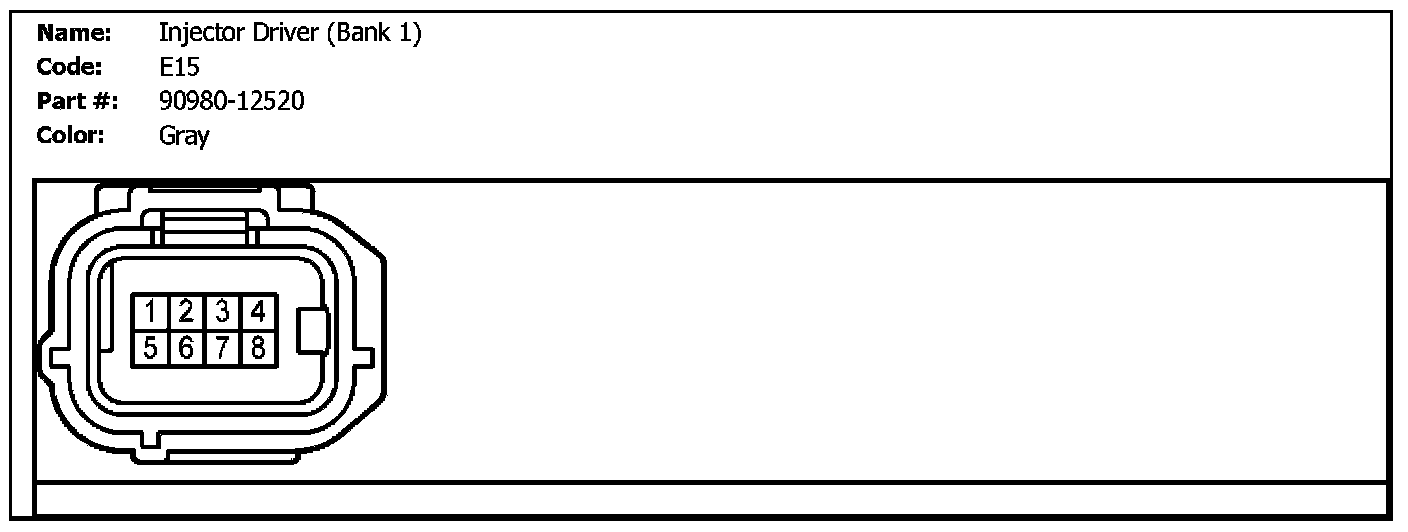

E15 (Injector Driver (Bank 1)):

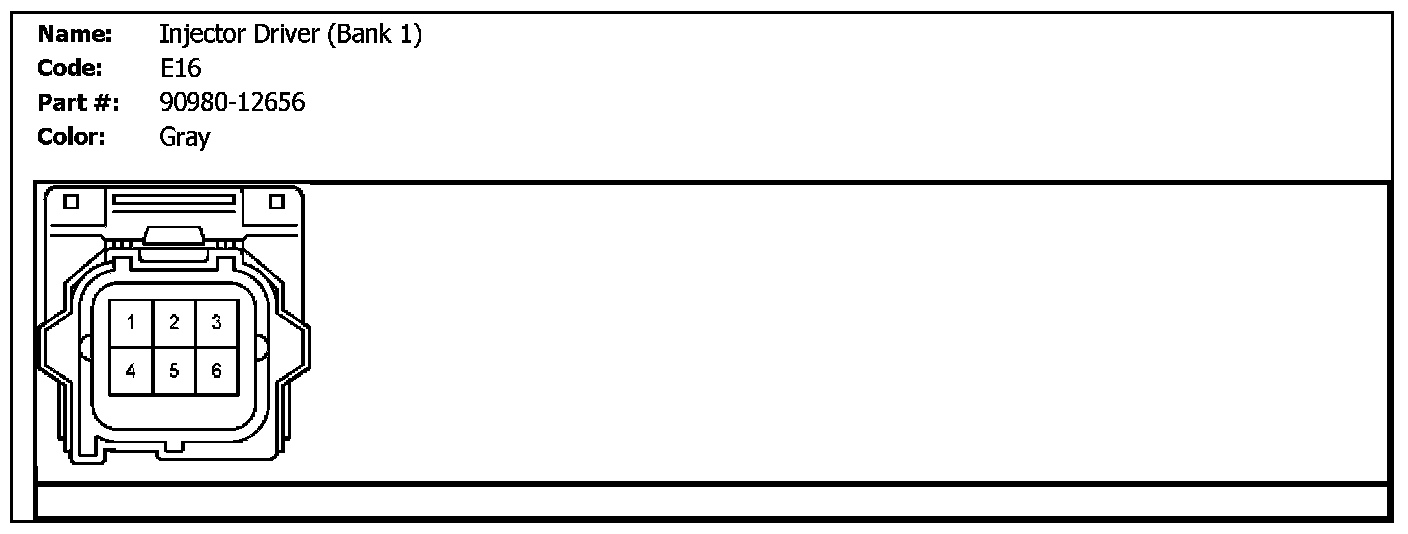

E16 (Injector Driver (Bank 1)):

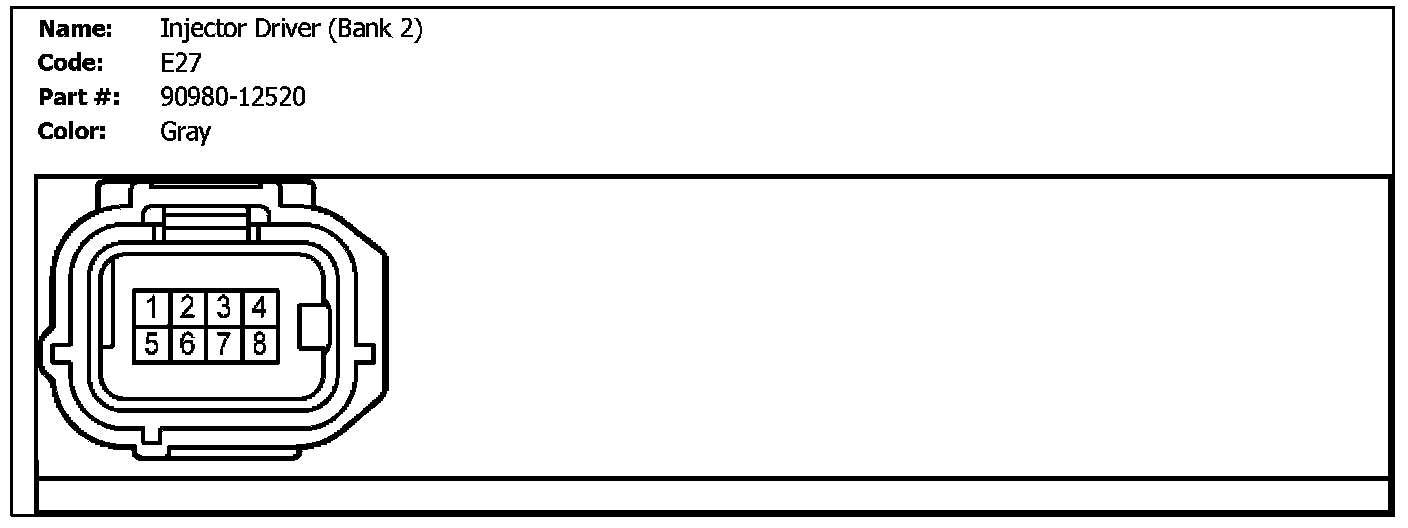

E27 (Injector Driver (Bank 2)):

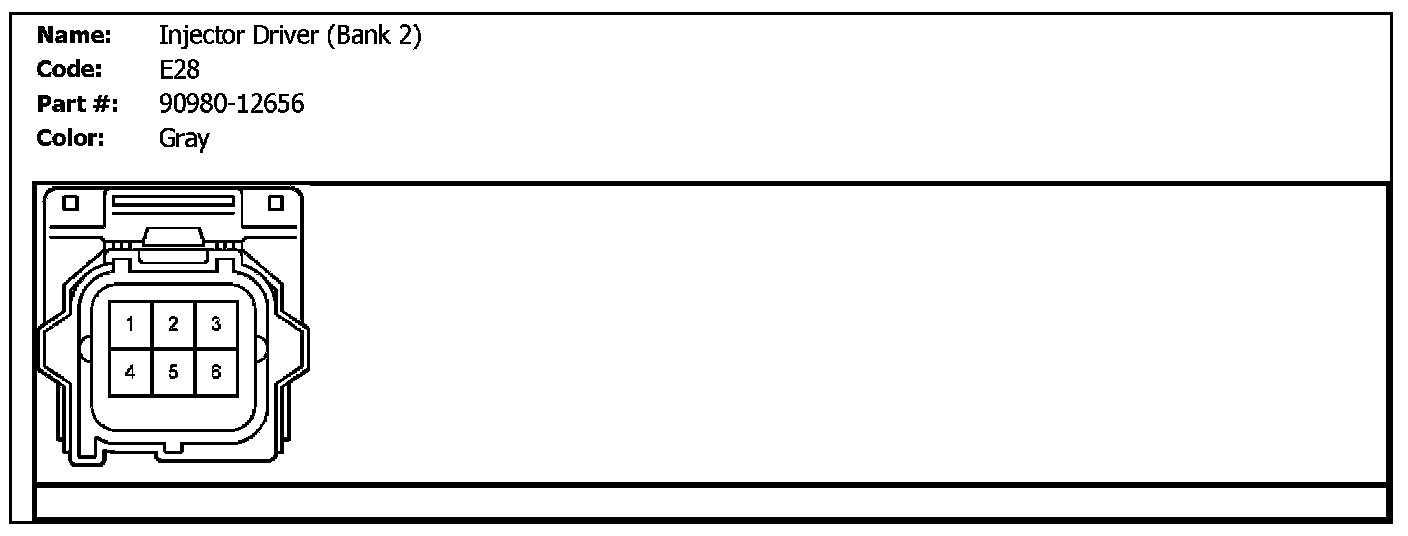

E28 (Injector Driver (Bank 2)):



H1 (Injector Driver (Bank 1)):

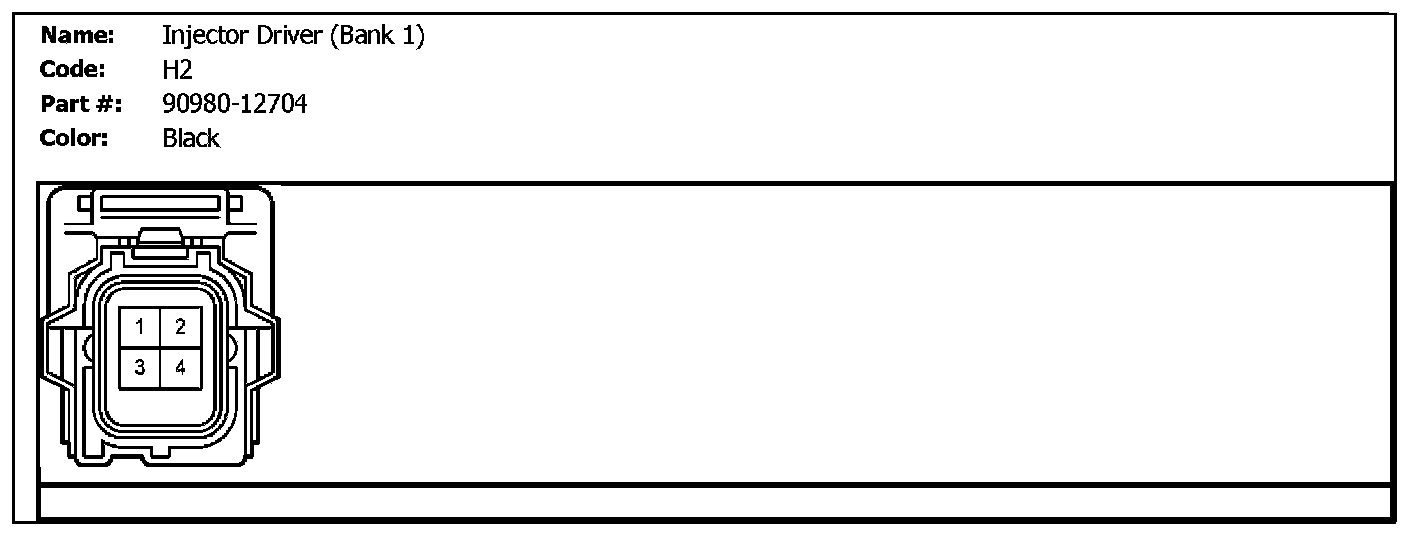

H2 (Injector Driver (Bank 1)):



H3 (Injector Driver (Bank 2)):

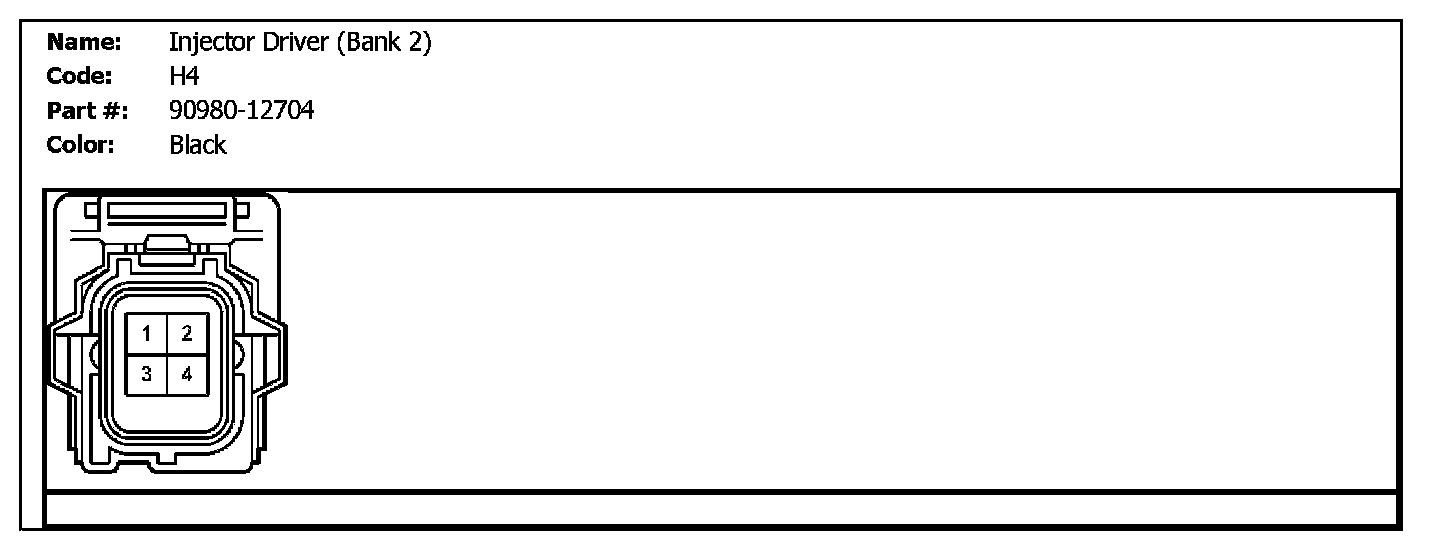

H4 (Injector Driver (Bank 2)):
