Alignment: Specifications








SERVICE SPECIFICATIONS: SUSPENSION: SERVICE DATA

SERVICE DATA

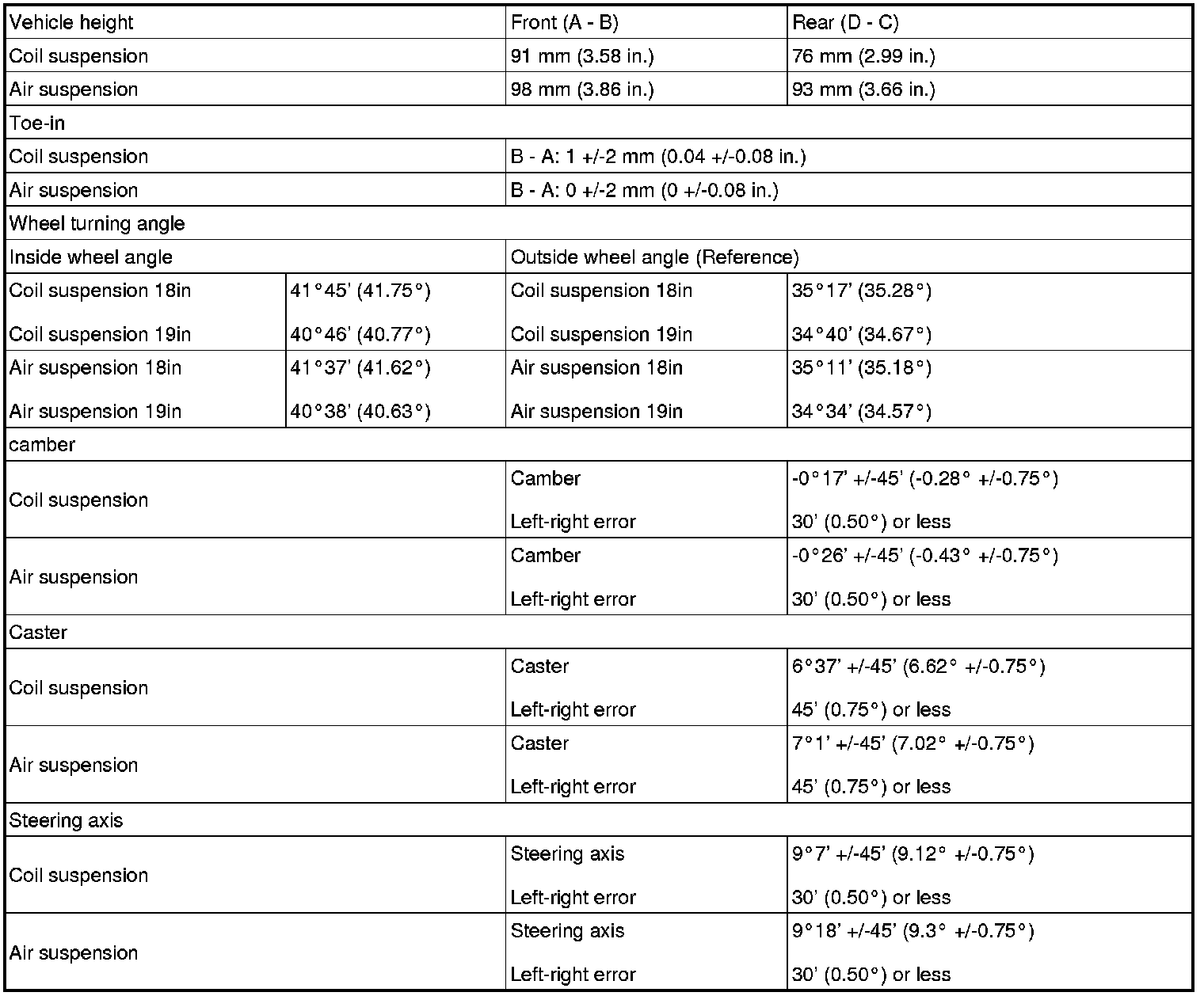

Front wheel alignment

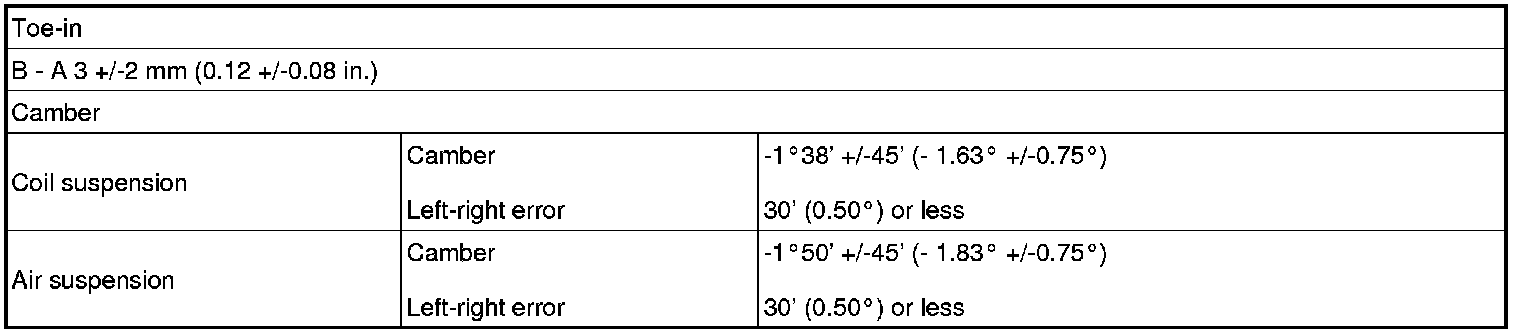

Rear wheel alignment

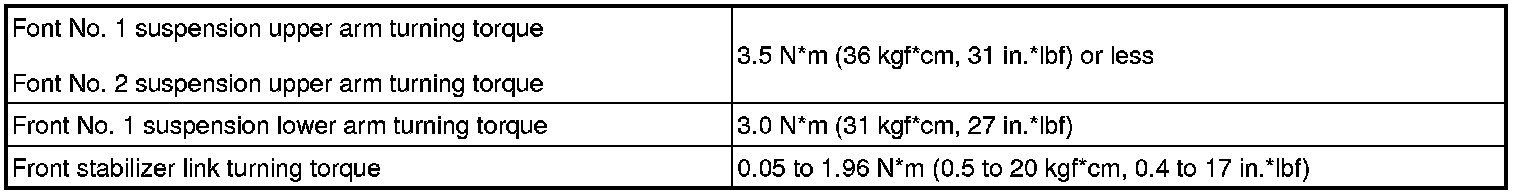

Front suspension

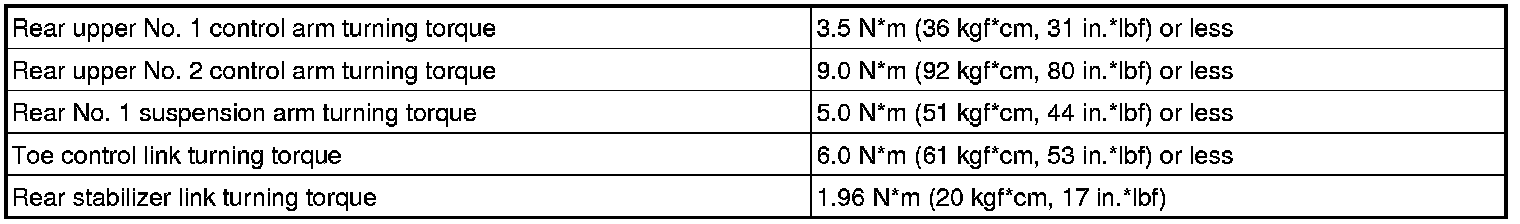

Rear suspension
