Installation

1UR-FSE ENGINE CONTROL SYSTEM: ENGINE COOLANT TEMPERATURE SENSOR: INSTALLATION

INSTALLATION





1. INSTALL ENGINE COOLANT TEMPERATURE SENSOR
(a) Install a new gasket to the engine coolant temperature sensor.

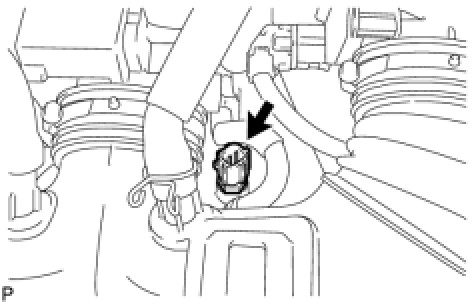

(b) Install the engine coolant temperature sensor.
Torque: 21 Nm (214 kgf-cm, 15 ft-lbf)
(c) Connect the engine coolant temperature sensor connector.
2. ADD ENGINE COOLANT Service and Repair

3. INSPECT FOR COOLANT LEAK Component Tests and General Diagnostics

4. INSTALL NO. 1 AIR CLEANER INLET Installation

5. INSTALL AIR CLEANER INLET COVER Installation

6. INSTALL V-BANK COVER SUB-ASSEMBLY Installation

7. INSTALL NO. 1 ENGINE UNDER COVER Service and Repair
