Main Relay (Computer/Fuel System): Locations

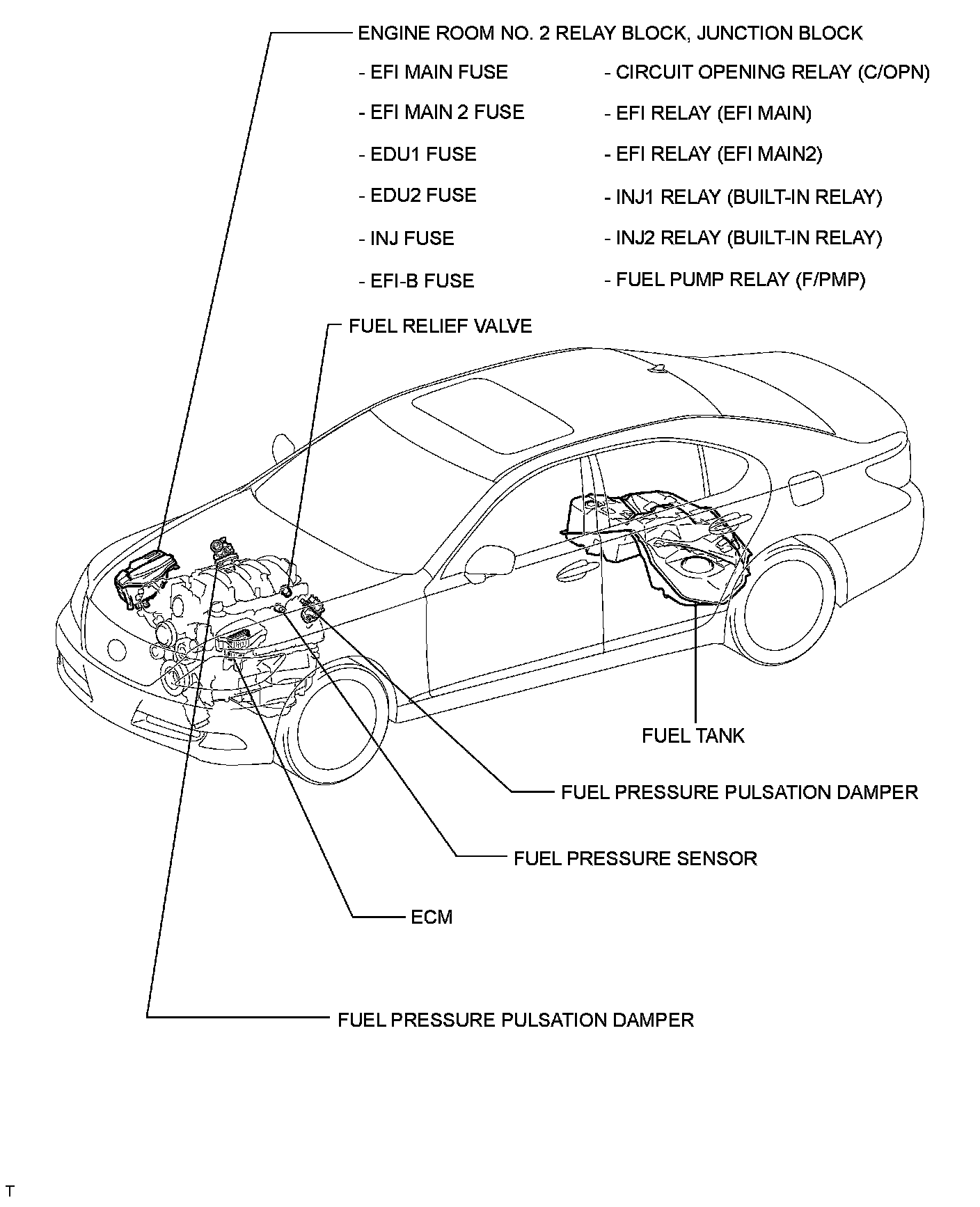

1UR-FSE FUEL: FUEL SYSTEM: PARTS LOCATION

PARTS LOCATION

ILLUSTRATION

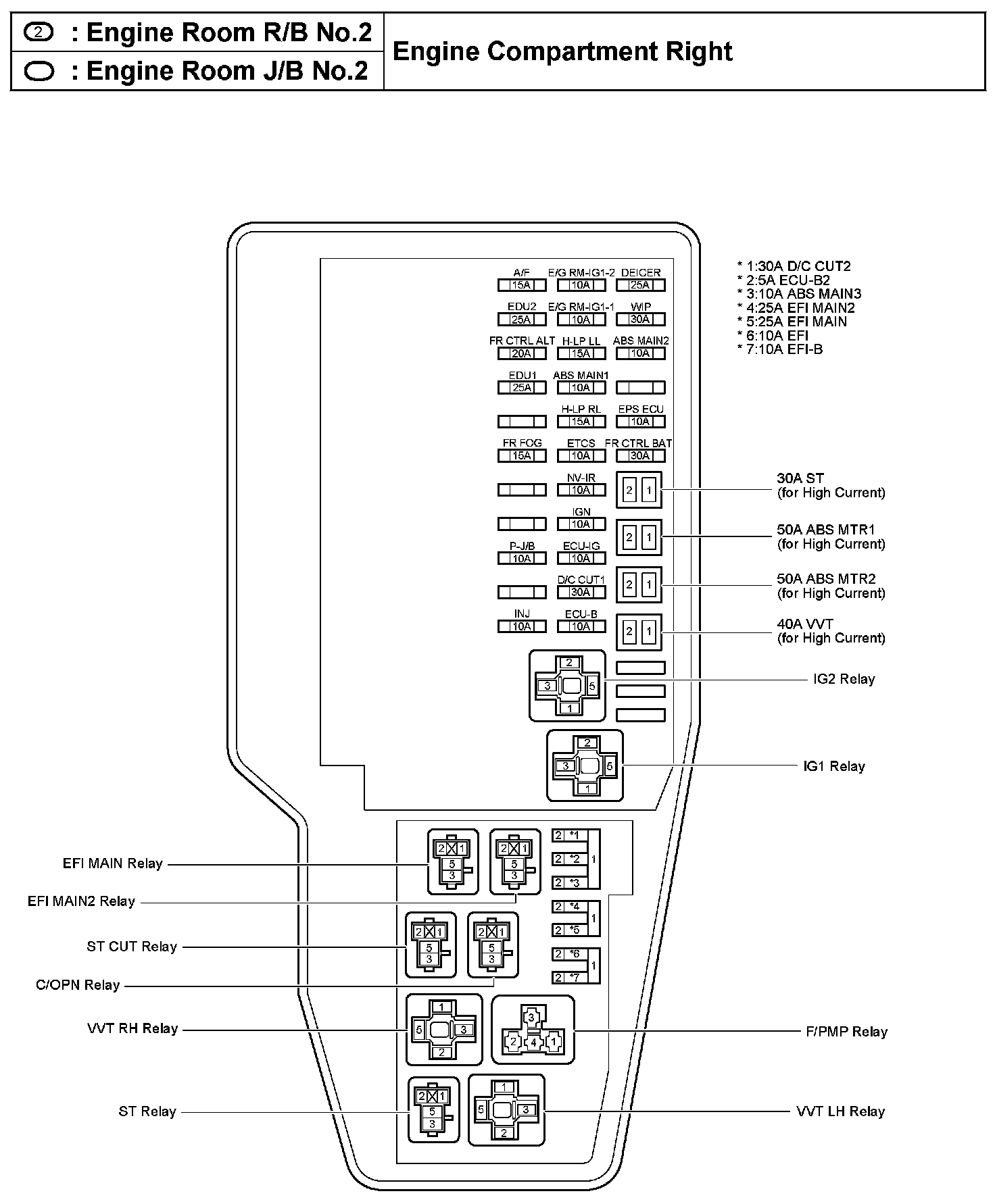

Engine Room R/B No.2, J/B No.2 - Engine Compartment Right:
