Ignition System: Locations

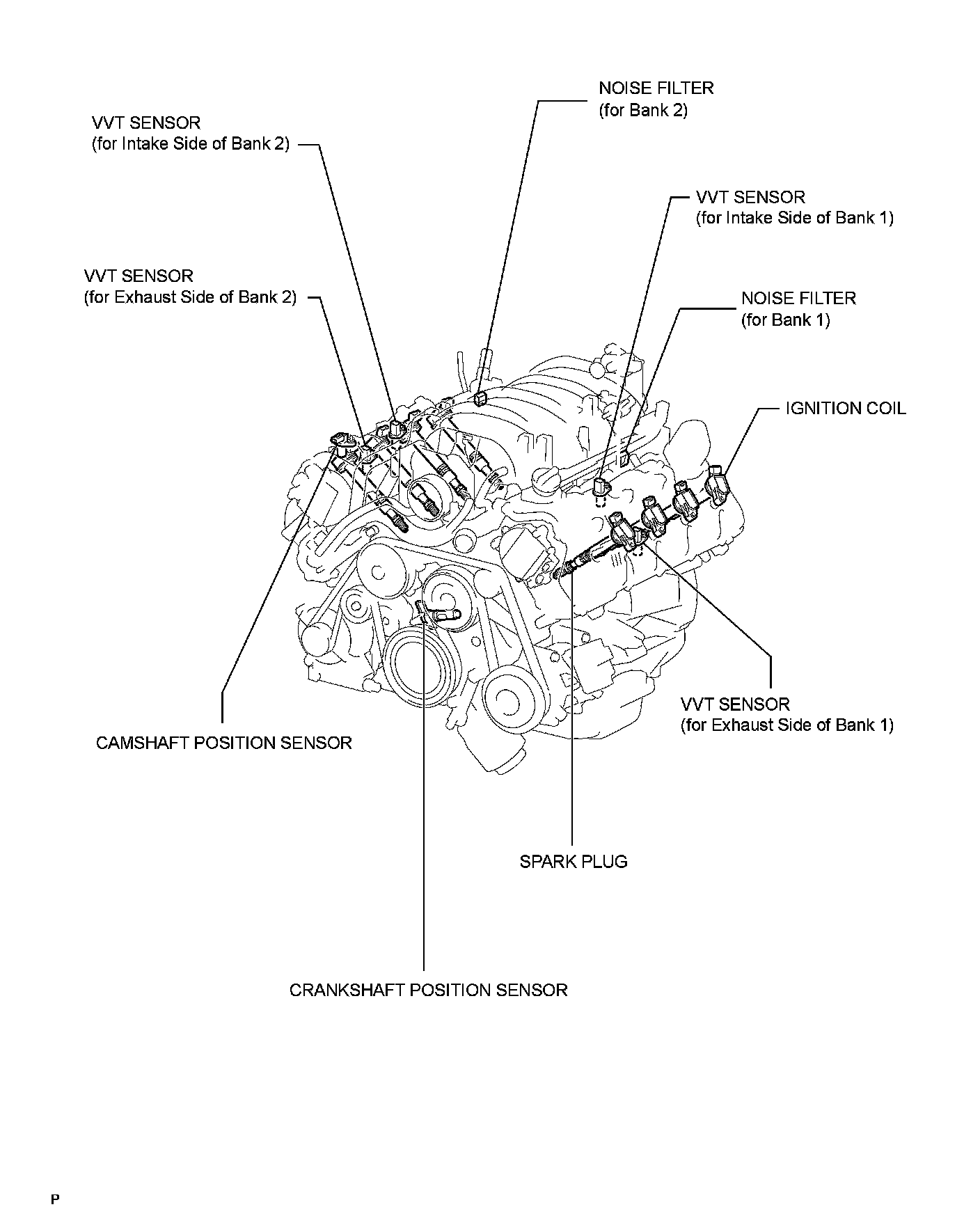

1UR-FSE IGNITION: IGNITION SYSTEM: PARTS LOCATION

PARTS LOCATION

ILLUSTRATION

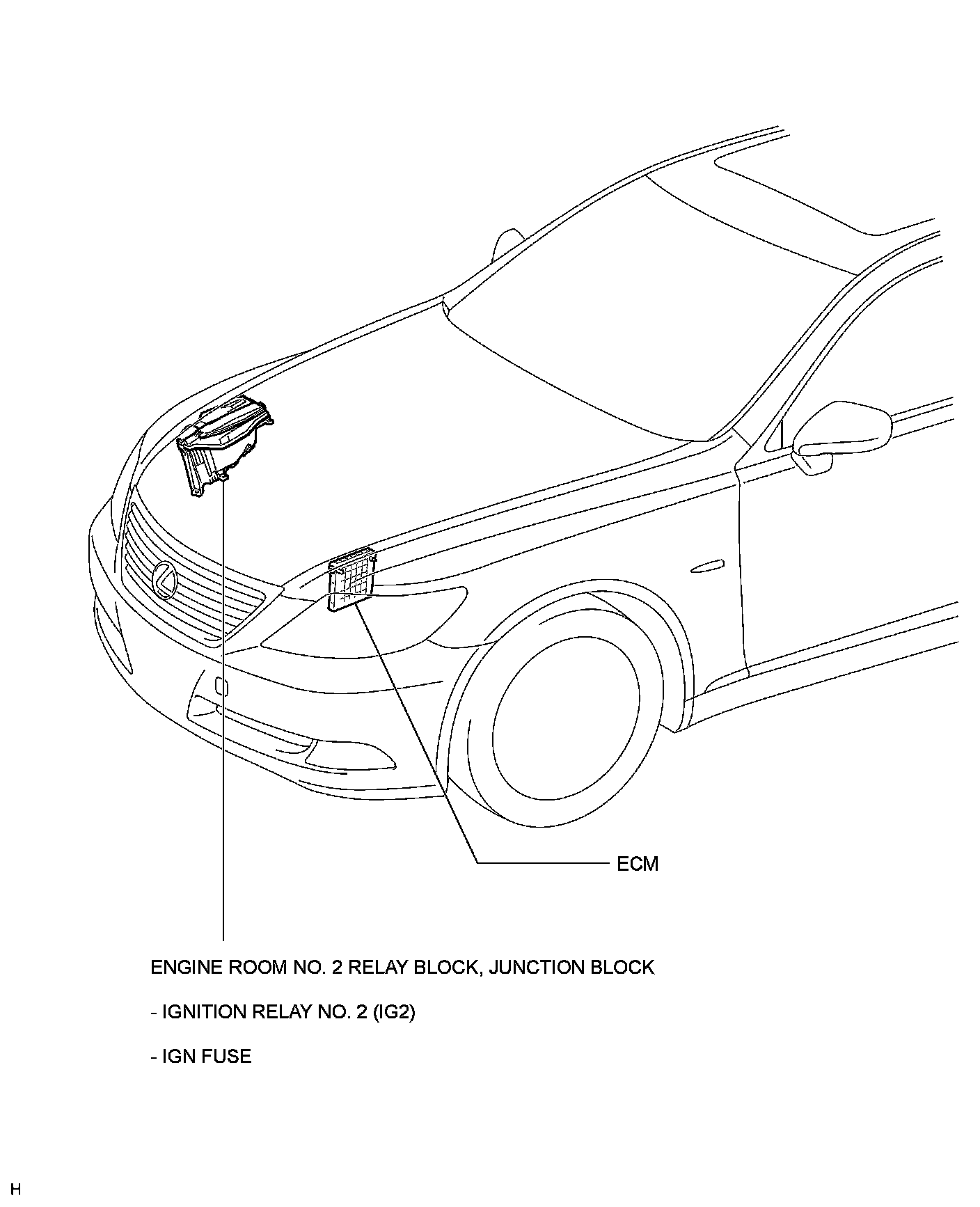

IGNITION SYSTEM: PARTS LOCATION:
