Torque Specifications

SERVICE SPECIFICATIONS: AA80E AUTOMATIC TRANSMISSION: TORQUE SPECIFICATIONS

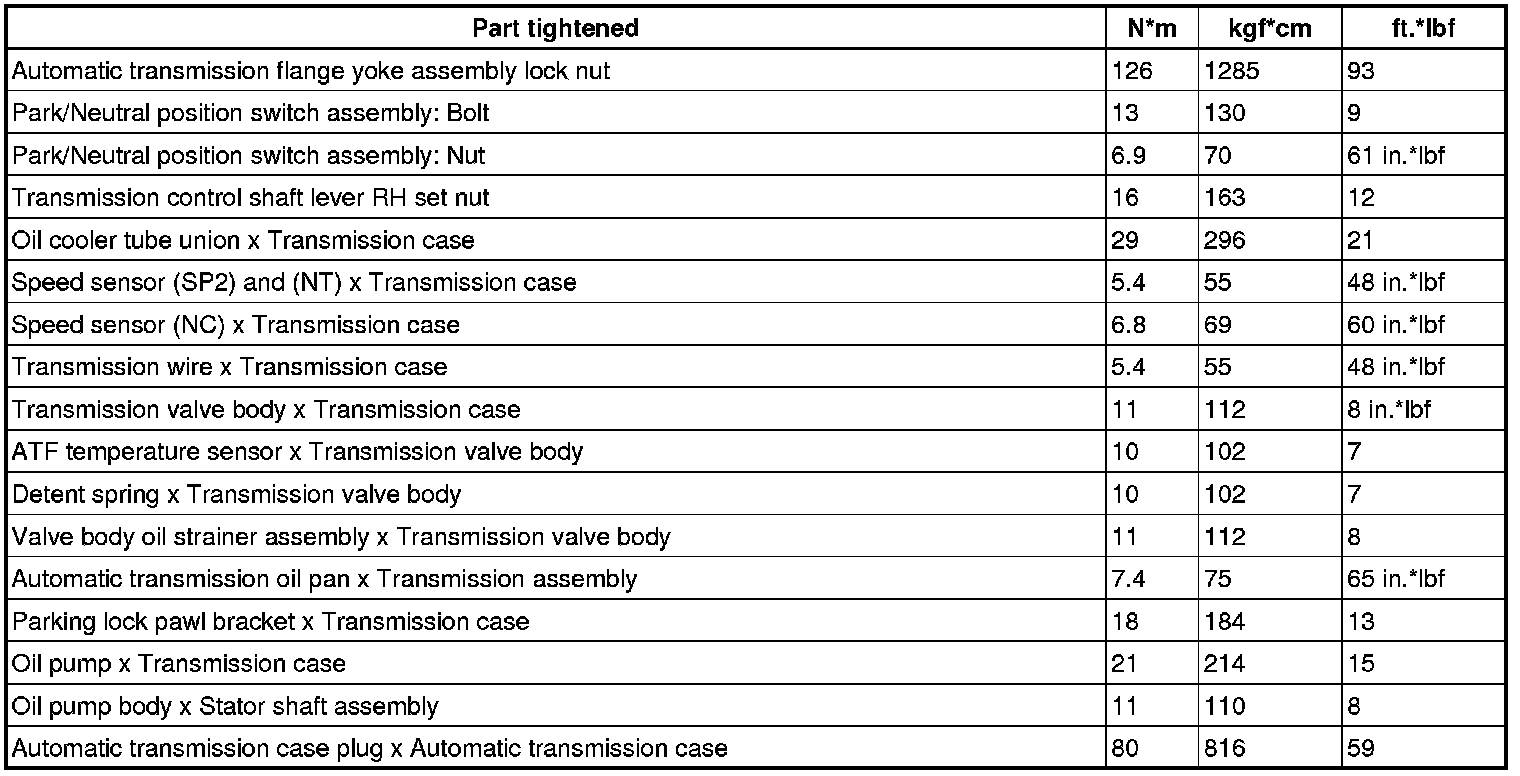

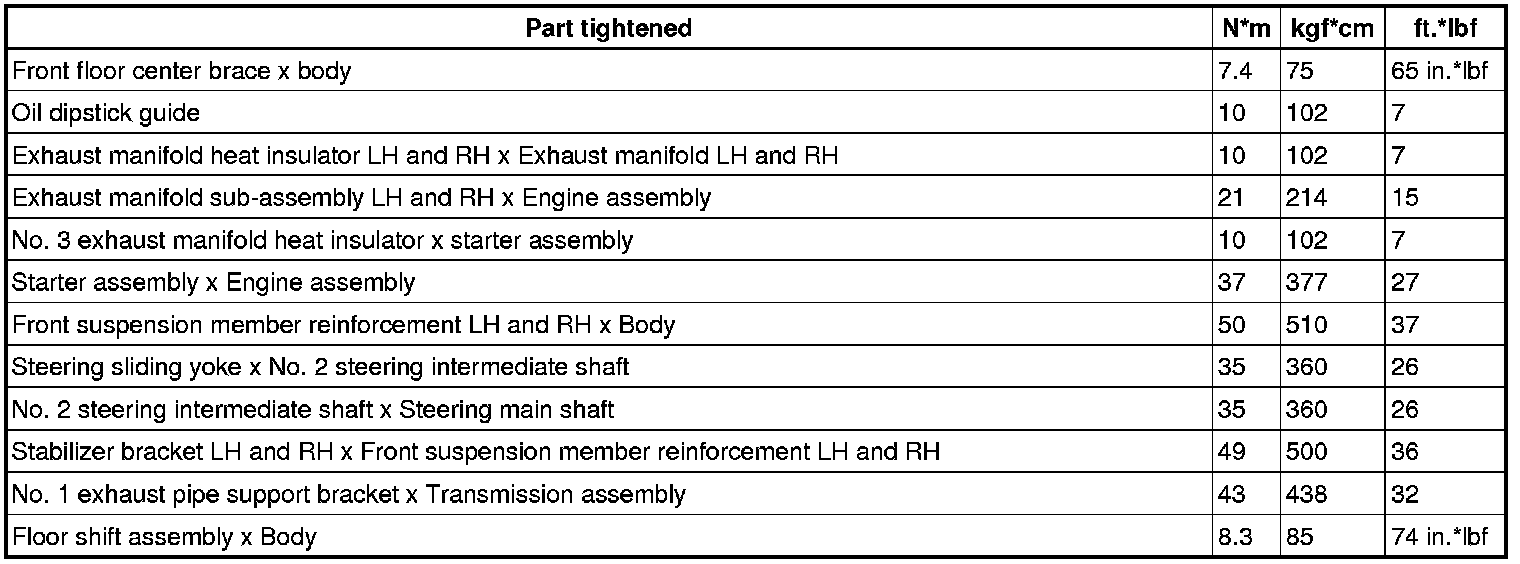

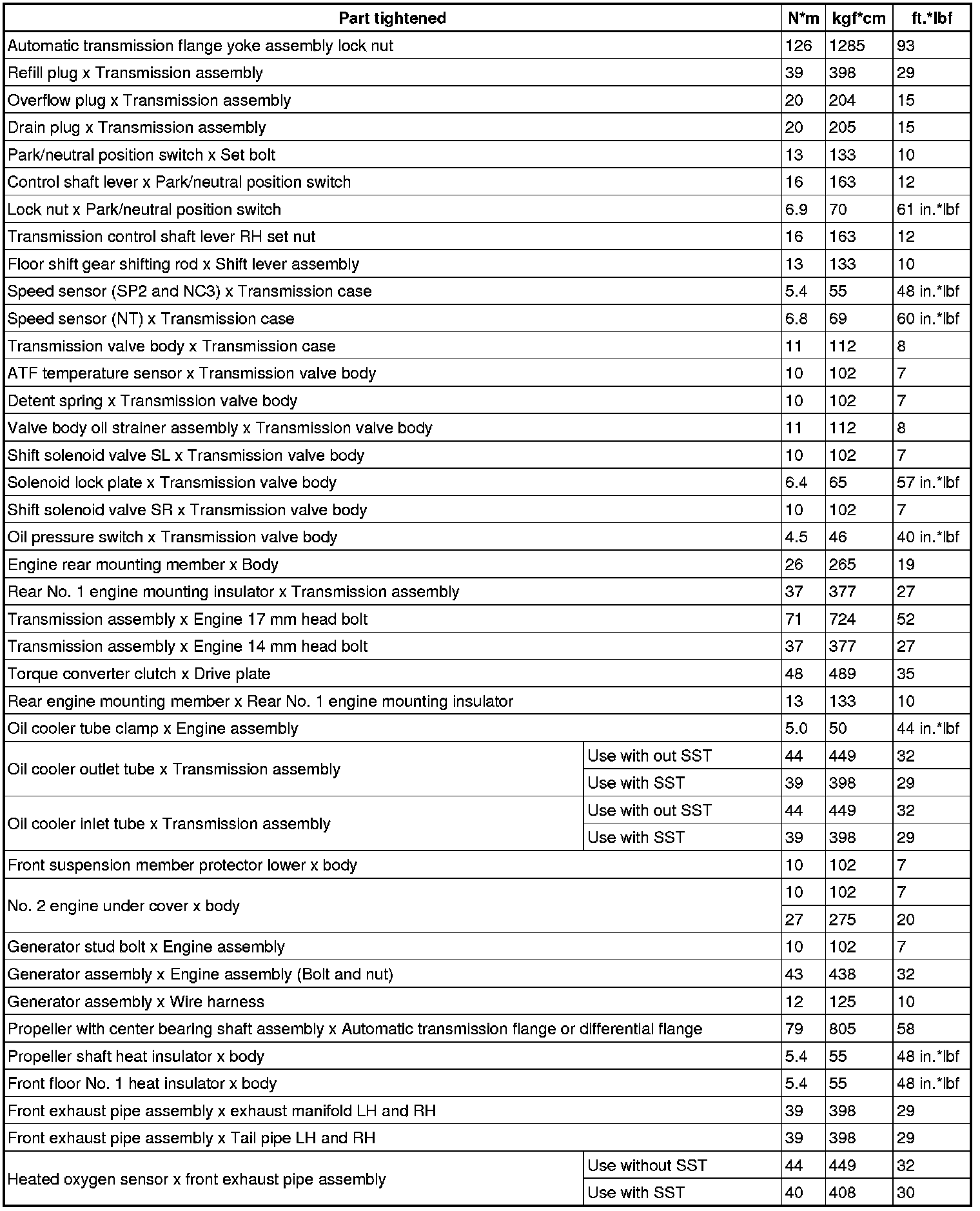

TORQUE SPECIFICATIONS

AUTOMATIC TRANSMISSION ASSEMBLY









AUTOMATIC TRANSMISSION UNIT

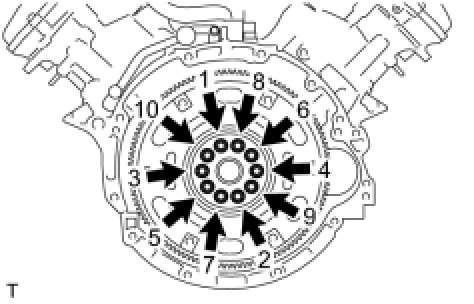

FLEXPLATE BOLTS





Install new bolts
First pass 30 Nm (306 kgf-cm, 22 ft-lbf)
Final pass Tighten 90°

TRANSMISSION FLUID PAN TO CASE BOLTS 7.3 Nm (74 kgf-cm, 64 in-lbf)
