Service Data








SERVICE SPECIFICATIONS: BRAKE: SERVICE DATA

SERVICE DATA

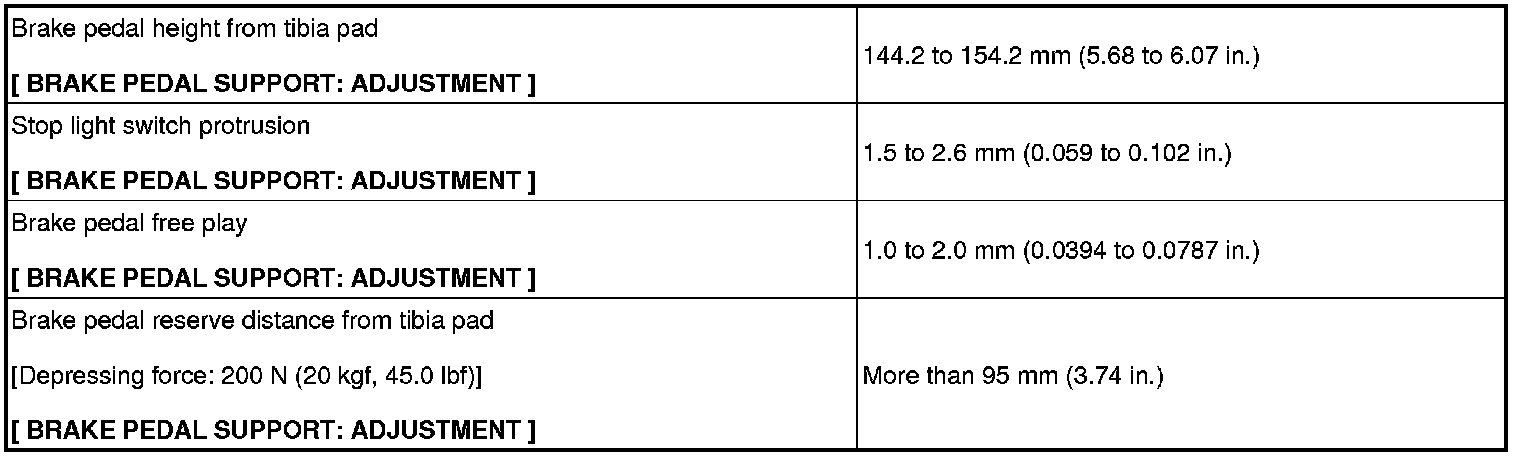

Brake Pedal

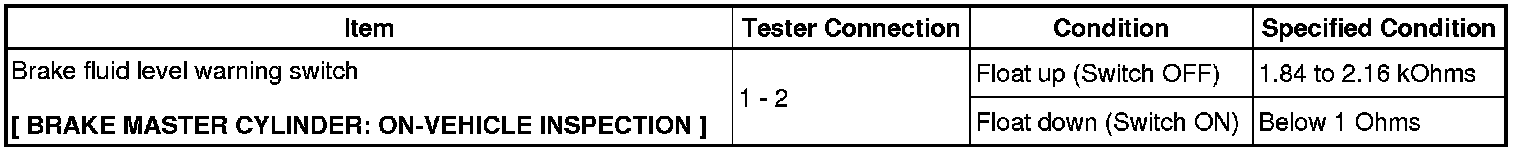

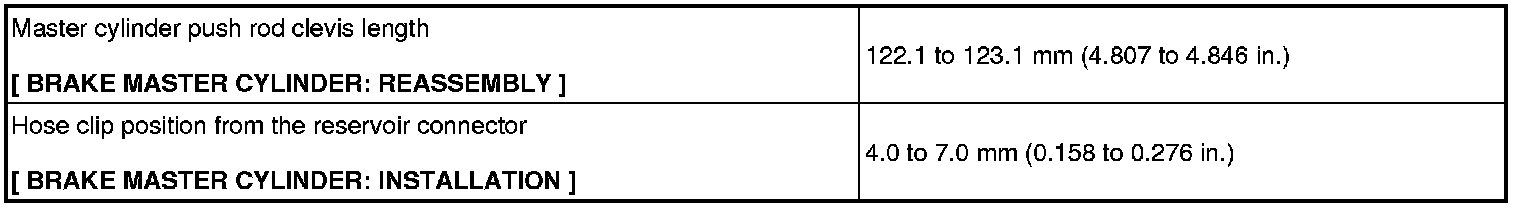

Brake Master Cylinder

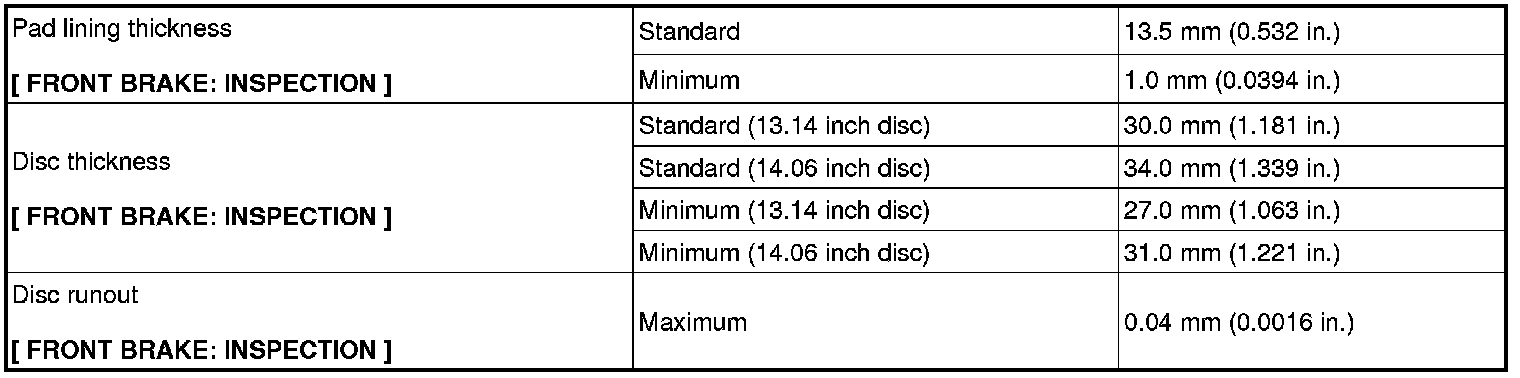

Front Brake





Front Disc Identification

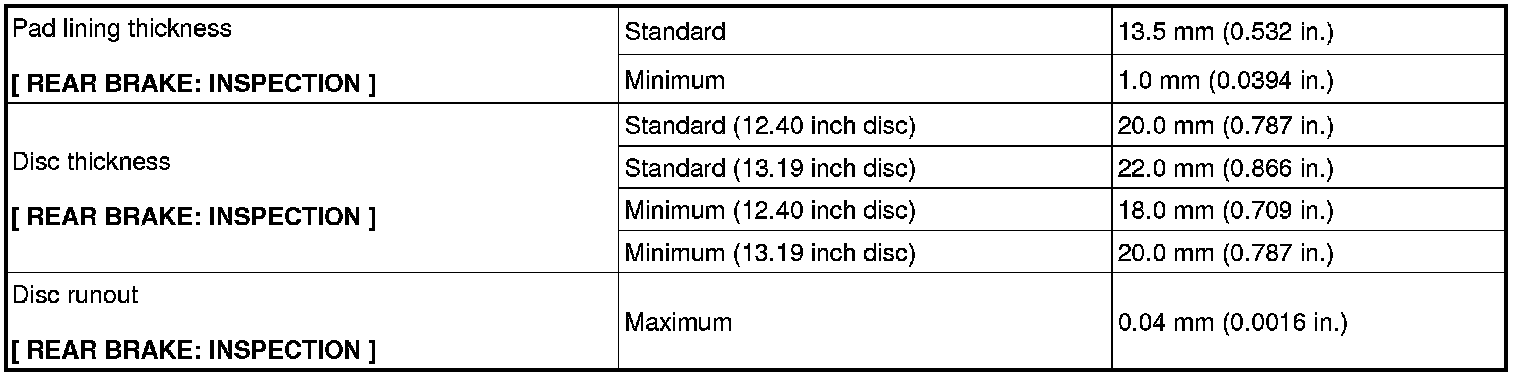

Rear Brake

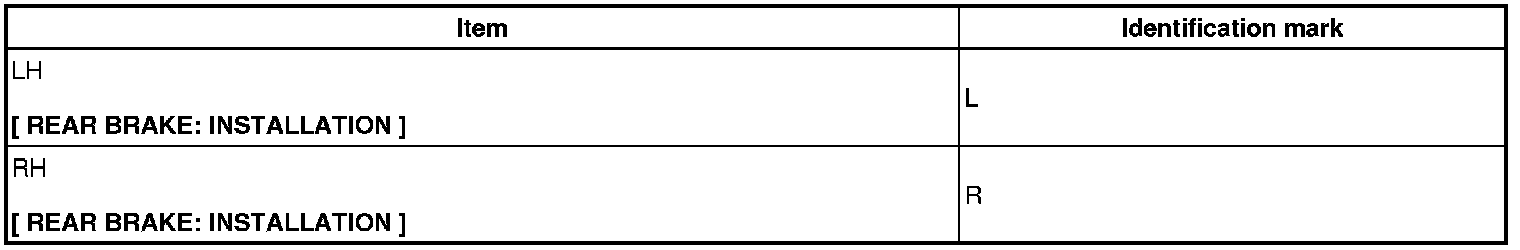

Rear Disc Identification
