Inspection Procedure

HINT:

Read freeze frame data using the Techstream. Freeze frame data records the engine condition when malfunctions are detected. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data from the time the malfunction occurred.

1. CHECK ECM (FRP VOLTAGE)
   1. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      TESTER CONNECTION SPECIFIED CONDITION CHART



      Tester Connection	Condition	Specified Condition
      A14-6 (FPR) - E3-1 (E1)	STA signal ON	9 to 14 V
      A14-6 (FPR) - E3-1 (E1)	STA signal OFF	0 to 3 V

      Fig 1: Identifying Terminals Of E3 And A14 ECM Connectors

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NG: REPLACE ECM  (See REMOVAL )

   OK: Go to Next Step

2. INSPECT FUEL PUMP RELAY (F/PMP)
   1. Remove the F/PMP relay from the engine room No. 2 relay block.
   2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART



      Tester Connection	Condition	Specified Condition
      3 - 4	When no battery applied to terminals 1 and 2	Below 1 Ω
      3 - 4	When battery voltage is applied to terminals 1 and 2	10 kΩ or more

      Fig 2: Identifying Terminals Of F/PMP Relay

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NG: REPLACE FUEL PUMP RELAY (F/PMP)  (See ON-VEHICLE INSPECTION )

   OK: Go to Next Step

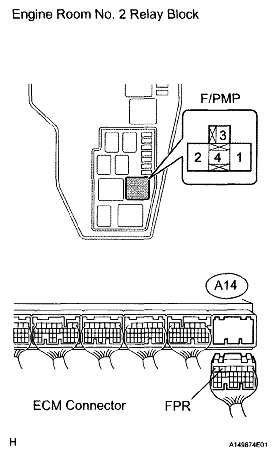

3. CHECK HARNESS AND CONNECTOR (F/PMP RELAY - ECM)
   1. Remove the F/PMP relay from the engine room No. 2 relay block.
   2. Disconnect the A14 ECM connector.
   3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance (Check for open)

      TESTER CONNECTION SPECIFIED CONDITION CHART



      Tester Connection	Condition	Specified Condition
      F/PMP relay (2) - A14-6 (FPR)	Always	Below 1 Ω

      Standard Resistance (Check for short)

      TESTER CONNECTION SPECIFIED CONDITION CHART



      Tester Connection	Condition	Specified Condition
      F/PMP relay (2) or A14-6 (FPR) - Body Ground	Always	10 kΩ or higher

      Fig 3: Identifying Terminals Of A14 ECM Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

   OK: REPLACE ECM  (See REMOVAL )
