Parts Location

Fig 1: Identifying Automatic Transmission System Part Location (1 Of 2)
G04948268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

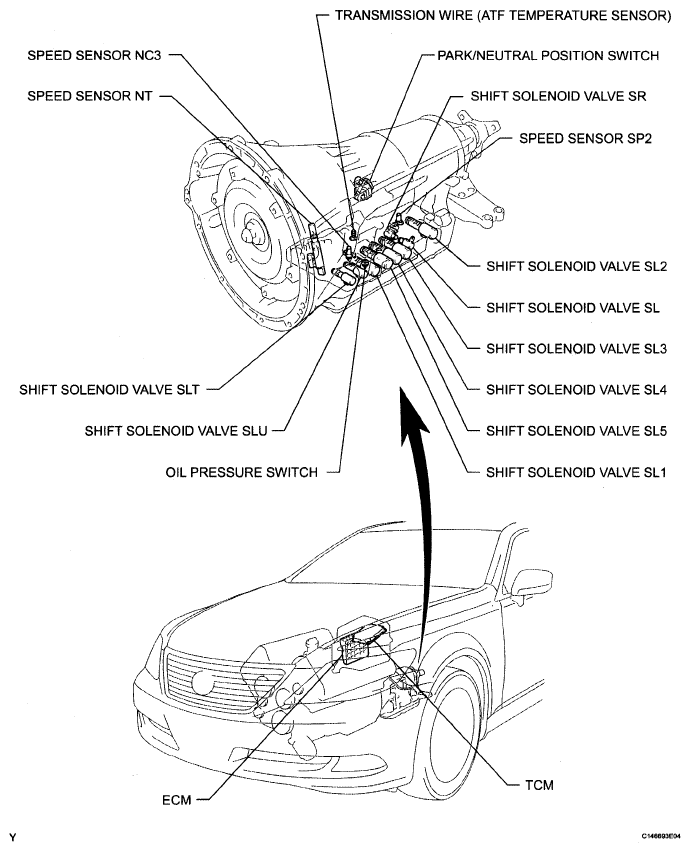

Fig 2: Identifying Automatic Transmission System Part Location (2 Of 2)
G05847422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
